Overview

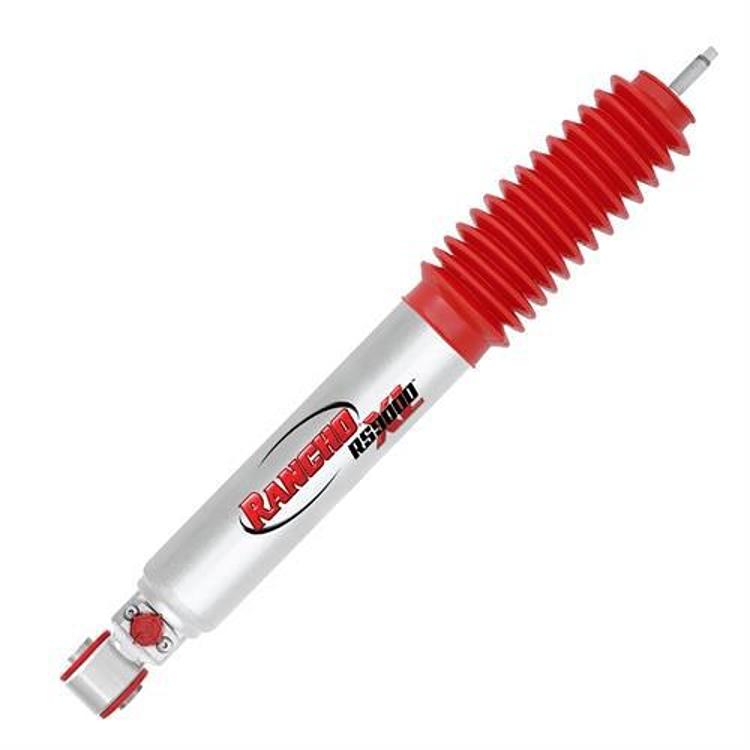

The Rancho RS999331 is a front RS9000XL Series gas charged shock absorber built for a 4 inch lift. It has an 18mm piston rod and a nine-position manual or remote tuning system, and it is used with the RS6509B long arm.
Rancho presents the RS9000XL as a shock that gives fingertip control over ride quality, with comfort on the road and control in demanding off-road conditions. The RS999331 is marked Direct Fit with no year, model or chassis code, so the fit should be checked against the vehicle before installation.
Key features
- Front position, built for a 4 inch lift
- Nine-position manual and remote tuning
- 18mm piston rod
- Nitrogen gas charged
- Protective boot included
- Used with Rancho long arm RS6509B
Lift setup and arm pairing
Front shocks on a lifted vehicle work at a different angle than on a stock suspension, so the shock’s length and mounting points matter as much as its damping. A 4 inch lift changes geometry, and a shock built for that height keeps piston travel in a more useful range. Pairing the shock with the correct control arm helps keep the wheel path predictable over bumps and at full droop.
Before buying, look at the whole front setup as one system: springs, bump stops, brake line length and steering components. A new shock can feel wrong if the rest of the front end was not matched to the same lift. After installation, check for clearance at full compression and full extension, and look for rubbing on the tire or bracket.
- Check brake line length after lifting
- Test steering for binding at full lock
- Recheck arm and shock torque after a few drives
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999331 |
| UPC | 10039703093313 |
| Shock series | RS9000XL Series |
| Position | Front |
| Lift height | 4 inch |
| Piston rod | 18mm |
| Tuning | 9-position manual/remote |
| Charge | Gas charged (nitrogen) |
| Boot | Protective boot included |
| Fitment type | Direct Fit |
Installation notes
The RS6509B long arm and a 4 inch lift are both part of this front shock setup. Confirm your suspension matches both before fitting the shock.
Vehicle fitment
Fitment for the RS999331 is Direct Fit for 2-door and 4-door models with a 4 inch lift. Make sure the year, model and trim match your vehicle before ordering, and check the mounting setup your vehicle needs.
Shocks for rear positions are not covered by this front-position part. Confirm your vehicle’s year, model and trim before ordering.
What’s included
A protective boot is included with the RS999331.
Not included: The Rancho RS6509B long arm is not included with this shock.
