Overview

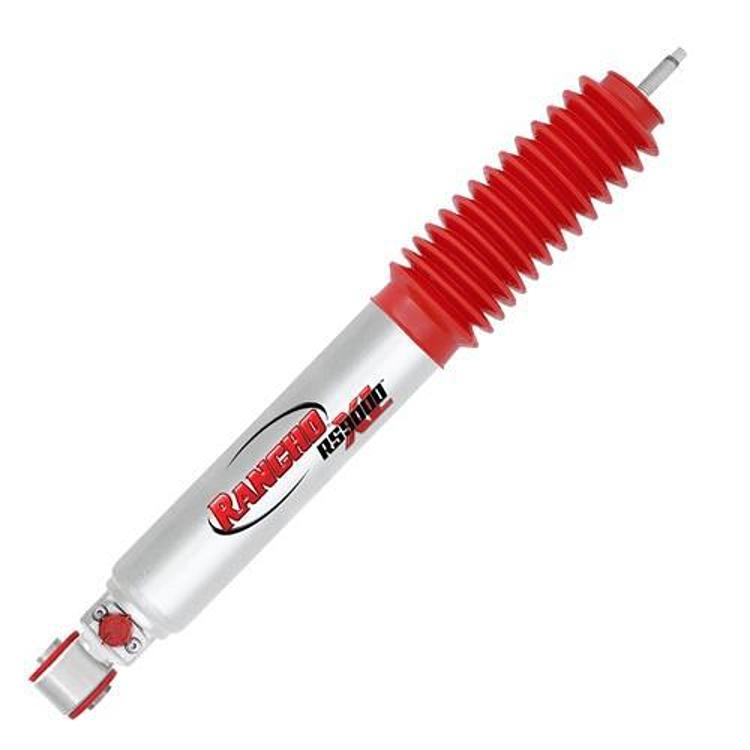

The Rancho RS999197 is a front gas-charged shock absorber in the RS9000XL Series, with a 2.75-in. body and an 18mm chrome rod. Its 9-position manual or remote tuning system is the main adjustment Rancho highlights.
The shock is a Direct Fit design. Confirm the lift or drop rating and fit against your vehicle before installing.
Key features
- Front position in the RS9000XL Series
- 2.75-in. (70mm) body diameter
- 18mm chrome rod diameter
- 9-position manual or remote tuning system
- Liquid metallic finish with polyurethane bushings
- Protective boot and Limited Lifetime Warranty
Lift and drop considerations
A lift or drop rating tells you how much the front suspension height changes, and that affects how far the shock extends and compresses. Shocks chosen for a different height can bottom out early or sit with too little travel. Measure your current suspension height and compare it with the shock’s design before fitting it.
Front shocks are often replaced with springs or control arms when a suspension is changed, so plan the full set together. Check the upper and lower mounts for wear and make sure the brake hose and steering components clear the new position. A short test drive on flat ground helps show whether the ride height works with the new parts.
- Measure ride height before and after
- Check brake hose clearance
- Inspect mounts and bushings
- Test drive on level ground first
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999197 |
| UPC | 10039703091975 |
| Shock series | RS9000XL Series |
| Position | Front |
| Body diameter | 2.75 in. (70mm) |
| Piston rod | 18mm chrome |
| Tuning | 9-position manual/remote |
| Charge | Gas charged |
| Finish | Liquid metallic |
| Bushings | Polyurethane |
| Lift entry | w/0 in. Lift/Drop |
| Fitment type | Direct Fit |
| Protective boot | Included |
| Warranty | Limited Lifetime Warranty |
Vehicle fitment
Verify the year, model and trim of your vehicle before ordering. Model years and trims decide the match, so check them against your vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lift entry reads w/0 in. Lift/Drop, so verify the setup against your current suspension height before installing.
What’s included
A shock absorber with protective boot.
Not included: Mounting hardware is not included. Plan to source it separately if your installation needs it.
