Overview

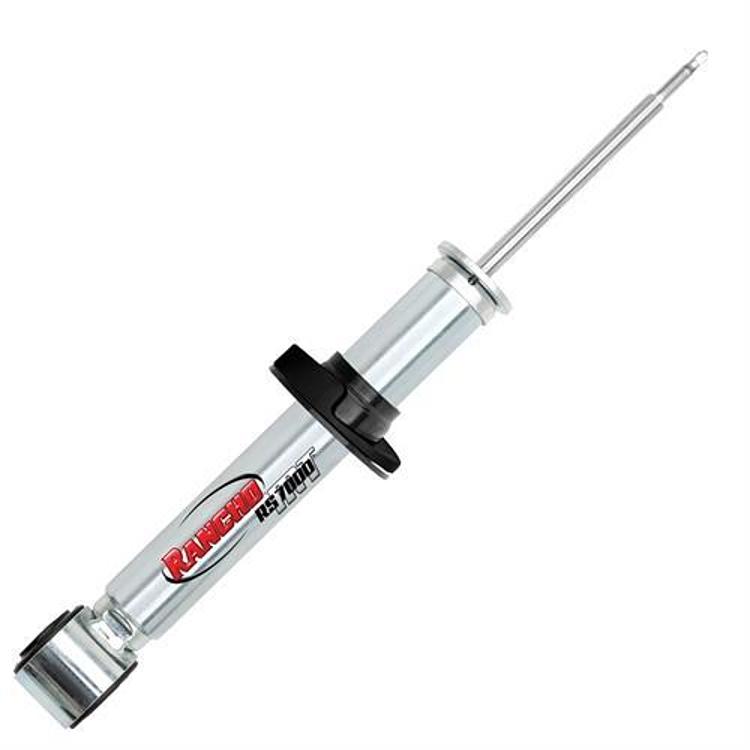

The Rancho RS7760 is a front RS7000MT Series monotube shock, a gas charged shock for the 2003 to 2004 and 2013 to 2018 Toyota 4Runner, the 2007 to 2014 Toyota FJ Cruiser and the 2005 to 2018 Toyota Tacoma. Its high-pressure monotube design dissipates heat for less fade, with damping aimed at ride quality and control.
Its velocity-sensitive damping responds to a range of off-road obstacles through ten stage valving. The body is 1.97 inch (50mm) in diameter, with a 14mm chrome rod and black natural rubber bushings. The shock is made in America.
Key features
- Ten stage velocity-sensitive valving
- Gas charged monotube design for heat dissipation
- 14mm chrome rod
- Black natural rubber bushings
- Protective boot included
- Brushed-zinc clear coated finish
What front shocks do
The front shocks control body motion when the truck brakes, turns and rolls over uneven ground, and they keep the tires in contact with the trail. A monotube design uses one main tube with a gas charge, which helps it shed heat during long descents and repeated hard use. Heat matters because fade reduces damping just when the vehicle needs it most.
Front shocks wear in ways that are easy to miss. Look for oil on the body, a bouncy ride after bumps, or a nose-dive under braking. Worn bushings also let the shock move in its mounts, which can make steering feel loose. Replacing both fronts at the same time keeps damping even from side to side, so steering and braking stay predictable.
- Replace fronts as a pair
- Inspect bushings at every tire rotation
- Re-torque mounting bolts after the first few drives
- Wipe the rod clean before installing the boot
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS7760 |
| UPC | 39703003445 |
| Shock series | RS7000MT Series |
| Position | Front |
| Body diameter | 1.97 in (50mm) |
| Rod | 14mm chrome |
| Valving | Ten stage, velocity-sensitive |
| Design | Gas charged monotube |
| Bushings | Black natural rubber |
| Finish | Brushed-zinc clear coat |
| Lift height | Listed with a 2 in. lift |
Vehicle fitment
Listed fitment for the RS7760 covers these vehicles: 2003 to 2004 and 2013 to 2018 Toyota 4Runner (Limited, SR5, Sport, TRD Off-Road, TRD Pro and Trail trims); 2007 to 2014 Toyota FJ Cruiser (Base); and 2005 to 2018 Toyota Tacoma (Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport and X-Runner trims). Confirm your vehicle’s year, model and trim before ordering.
The 2005 to 2012 and 2019 and newer 4Runner are not on the list, and neither are FJ Cruisers from 2015 onward.
Installation notes
Support the vehicle on jack stands before removing the factory front shock, since the shock works under spring load.
What’s included
A protective boot comes with the shock.
