Overview

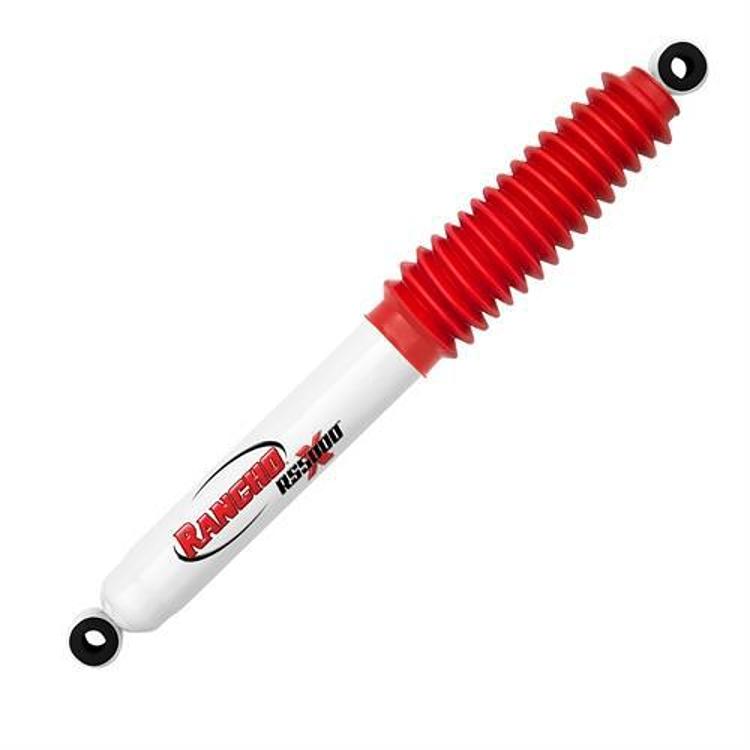

The Rancho RS55112 is an RS5000X Series shock absorber, part number RS55112, with a compressed length of 16.01 and an extended length of 26.42. Rancho credits a patented rebound valving system and an advanced compression phase with better on- and off-road handling.
No vehicle is named for this part, so match these lengths to your current shock before ordering.
Key features
- Travel length listed at 10.41
- Patented rebound valving system.
- Advanced compression phase developed by Rancho’s ride engineers
- Described by Rancho as a direct-fit shock
Signs of a worn shock
A worn shock absorber usually shows itself through the ride. Look for a body that keeps bouncing after a dip, a nose that dives hard under braking, or cupped tire wear that repeats across the tread. Oil residue on the shock body often means the seal has failed and the unit can no longer control movement as designed.
Before buying a replacement, measure the current shock’s collapsed and extended lengths and its stroke, then compare them with the figures shown here. Check the upper and lower mounts, since bent brackets or cracked bushings can make a new shock wear quickly. Replacing shocks in matched pairs keeps the two sides of an axle behaving the same way.
- Check for oil on the shock body
- Inspect mounts and bushings for cracks
- Replace in matched pairs per axle
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS55112 |
| UPC | 10039703007570 |
| Series | RS5000X |
| Compressed length | 16.01 |
| Extended length | 26.42 |
| Travel length | 10.41 |
Vehicle fitment
No vehicle application is confirmed for the RS55112, so fit stays unverified until a year, model and trim are matched to it.
Match your vehicle’s year, model and trim to the shock before ordering, and compare the compressed, extended and travel lengths with your current shock.
What’s included
One Rancho RS5000X Series shock absorber, part number RS55112.
