Overview

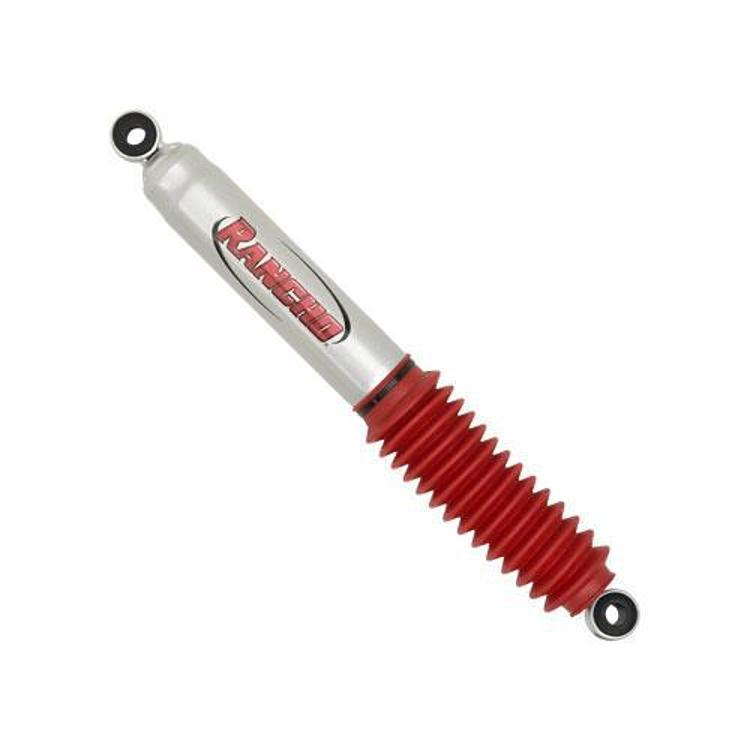

The Rancho RS5401 is a front steering stabilizer cylinder from the RS5000 series, built with an eyelet at each end and designed to bolt to the vehicle’s original equipment mounting locations. A steering stabilizer, also called a steering damper, connects the front axle to the frame to control side-to-side steering movement.
This stabilizer is designed to reduce steering shimmy and driver fatigue, and it can help protect front-end suspension components and reduce tire wear. It fits a broad range of Chevrolet, Dodge, Ford, GMC, Isuzu, Jeep, Oldsmobile, Plymouth and Toyota trucks and SUVs, from older K-series and W-series pickups to Ford Expedition, Chevrolet Tahoe and GMC Yukon models.
Key features
- Ten-stage velocity sensitive valving
- Twin tube cellular gas design
- Standard eyelet style with eye holes on both ends
- Bolts to original equipment mounting locations
- Red shock boot with factory cut slots at the bottom
- Black bushings painted white by Rancho
Choosing and replacing a damper
A steering stabilizer cylinder works as a damper between the front axle and the frame. Its job is to slow the quick side-to-side movement that builds up over rough pavement, washboard gravel or a tire that has lost balance. Because it sits in the steering path, a worn cylinder can allow the wheels to wander, so it is worth replacing when play or leaks appear.
Eyelet ends connect to bushings at each end, so inspect those bushings, the sleeve and the cotter pin when fitting a new cylinder. Trucks with older frames may show worn mounting holes, which should be repaired before installation. Check that the stud and nuts are tightened properly after the first drive, and recheck them again after a few days of normal use.
- Inspect the red boot for cracks and fluid residue
- Replace worn mounting bushings at the same time
- Check tie rods and ball joints when the cylinder fails
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS5401 |
| UPC | 39703540100 |
| Series | RS5000 Series |
| Type | Stabilizer only |
| Position | Front |
| Single / dual | Single |
| End style | Eyelet, eye holes on both ends |
| Extended length | 19-3/4 |
| Collapsed length | 12 |
| Sizes listed | 5/8-in. (16 mm) and 1/2-in. (12 mm) |
| Shock boot | Red, factory cut slots at the bottom |
| Brackets | Not included |
Vehicle fitment
The manufacturer fitment list for the RS5401 covers Chevrolet K1500, K2500 and K3500 pickups and Suburbans, Chevrolet S10 and Blazer, Dodge D-series, W-series and Ram 1500, Ford Bronco, F-100, F-150 and F-250, GMC K1500, K2500 and K3500, Jeep Cherokee XJ, Comanche, Grand Cherokee ZJ and Wrangler JK, Isuzu and Toyota pickups, and several Oldsmobile, Plymouth and Ford Expedition models, each with the years and trims shown on the Fitment tab.
Models outside these year ranges, such as later Dodge Ram 1500 and Ford F-150 generations and the Chevrolet Silverado 2500 HD, are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Brackets are not included, so the cylinder must bolt to the vehicle’s original stabilizer mounting locations. The included stud, washers, nuts, cotter pin and sleeve make up the connection hardware.
What’s included
The kit includes 1 stud, 2 washers, 2 nuts, 1 cotter pin, 1 sleeve, 1 red boot and a zip tie, along with the stabilizer cylinder.
Not included: brackets.
