Overview
The Rancho RS5407 is a front steering stabilizer cylinder for Jeep Wrangler JK models, in both 2-door and 4-door bodies. It uses a double eyelet design and is part of Rancho’s RS5000 series.
It is intended to reduce steering shimmy and driver fatigue, help protect front-end suspension components and reduce tire wear. JK models need bracket part number RANRS5510, which is sold separately.
Key features
- Ten-stage velocity sensitive valving
- Twin tube cellular gas design
- Double eyelet design
- 1-3/8 inch diameter piston on most applications
- Extended length 19-3/4 inch, collapsed length 12 inch
- Shock boot with factory cut slots at the bottom
Before you install
A steering stabilizer sits between the front axle and the steering linkage, damping sudden steering inputs so the wheels do not shimmy or kick back over rough ground. On a Wrangler JK it works alongside the track bar and tie rod ends, so the whole front end should be inspected together rather than swapping one part alone.
Double eyelet ends are simple to check. Look for play at both eyes, cracked bushings and any fluid weeping from the cylinder body. A torn boot lets grit reach the rod and wears seals faster, so replace the boot as soon as it splits.
- Check the bracket and mounting hardware for wear before reinstalling
- Re-check the fasteners after the first few trail runs
- Inspect the track bar and tie rod ends when the stabilizer is replaced
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS5407 |
| UPC | 7000030345 |
| Series | RS5000 Series |
| Type | Stabilizer only |
| Position | Front |
| Single / dual | Single |
| End style | Double eyelet |
| Piston diameter | 1-3/8 inch (on most applications) |
| Extended length | 19-3/4 inch |
| Collapsed length | 12 inch |
| Sizes listed | 5/8-in. (16 mm) |
| Shock boot | Red, factory cut slots at the bottom |
| JK bracket | RANRS5510 (separate part) |
| Brackets included | Not included |
Vehicle fitment
It fits 2007-2018 Jeep Wrangler JK models with 2-door and 4-door bodies. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm fit for your vehicle’s year, model and trim before ordering, especially if you drive a TJ, JL or another Jeep model.
Installation notes
JK models mount the stabilizer with bracket part number RANRS5510, a separate part. Check the hardware you have against your installation before starting.
What’s included

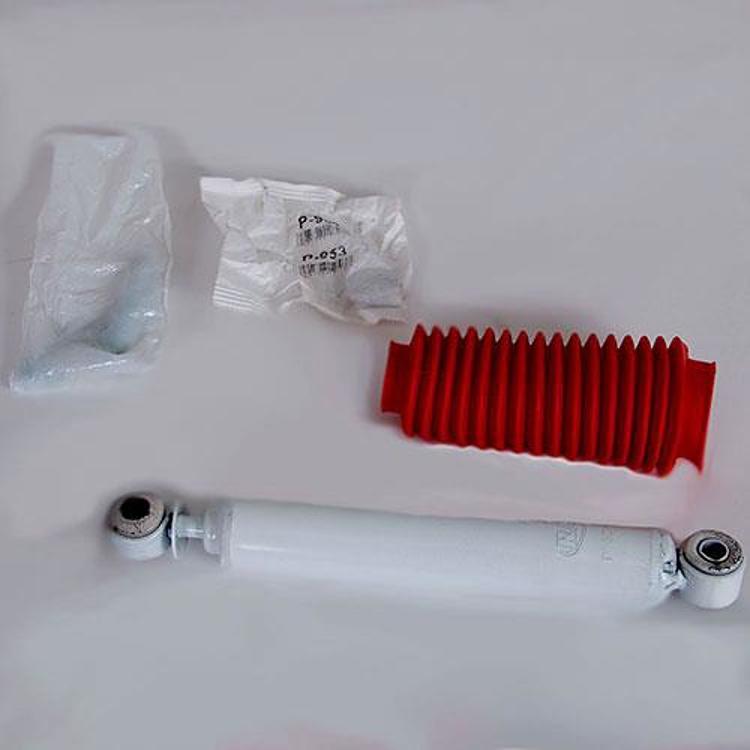

Kit includes 1 stud, 2 washers, 2 nuts, 1 cotter pin, 1 sleeve, 1 red boot and zip tie, along with the stabilizer cylinder.
Not included: JK bracket, part number RANRS5510.
