Overview

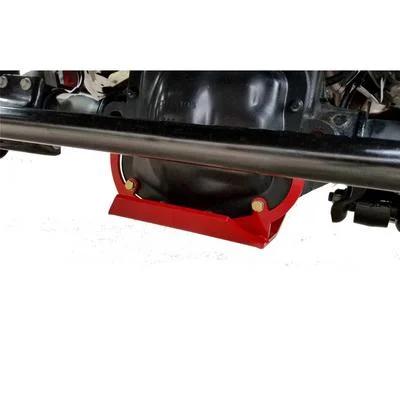

The Rancho Front Dana 44 differential glide plate, part number RS62116, is a 1/4 inch steel plate that mounts to the front axle casting of a Dana 44. It is made for the Jeep Wrangler JL and allows a smoother glide over obstacles, forwards and backwards.
The plate protects the differential casting from direct contact in severe off-road conditions. It works with OE and most aftermarket differential covers, so the cover does not need replacing.
Key features
- Mounts to the front axle casting
- Protects the casting from direct contact with rocks
- Glide surface for smoother movement over obstacles forwards and backwards
- Made from 1/4 inch high-strength, low-alloy steel
- Red powder-coated finish
- No cutting or drilling required for installation
Off-road axle protection
A differential guard sits low under the axle, where rock strikes and stumps are most likely to hit. Its job is to take that contact so the casting does not get dented or cracked. Glide plates also let the vehicle slide over an obstacle rather than catch on it, which helps when the tires are lifted or the approach is steep. Plates are most useful on trails where the front axle is likely to bottom out.
Before adding a guard, look at the skid plates, control arms and track bar for clearance, since those parts often sit nearby. Check the front axle breather and cover bolts after any hard hit. A glide plate is a protective part, not a replacement for good line choice on the trail.
- Check the axle cover bolts after hard impacts
- Look at the powder coat for chips at contact points
- Keep the breather clear of mud and debris
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS62116 |
| Axle | Front Dana 44 |
| Position | Front |
| Type | Differential guard |
| Material | 1/4 inch high-strength, low-alloy steel |
| Finish | Red powder coat |
| Installation | No cutting or drilling required |
Vehicle fitment
It fits the 2018–2026 Jeep Wrangler JL across several body styles and trims, including the JL Rubicon, and the 2020 Jeep Gladiator.
The list has no 2018 or 2019 Gladiators and no JK or TJ Wrangler models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The plate mounts to the front axle casting and needs no cutting or drilling. It can stay in place with OE or most aftermarket covers, so the cover does not need changing.

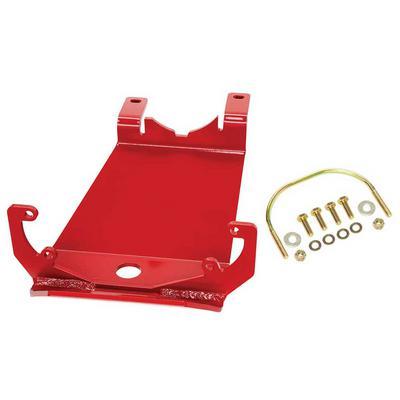

What’s included
Check that you have the mounting hardware your installation needs before starting.
