Raceline Wheels Clutch, 20x10 with 8x6.5 Bolt Pattern – Satin Gunmetal – 934G-21080-19

Raceline Wheels

Shop Raceline Wheels 20x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 20 x 10-inch aluminum spoke wheel in gunmetal
  • 8 on 6.5 bolt pattern, -19 offset, 125 center bore, 4.75 backspacing
  • Part number RLW934G-21080-19 from the 934 Clutch series
  • Universal Fit label with no vehicle tied to it

Description

Overview

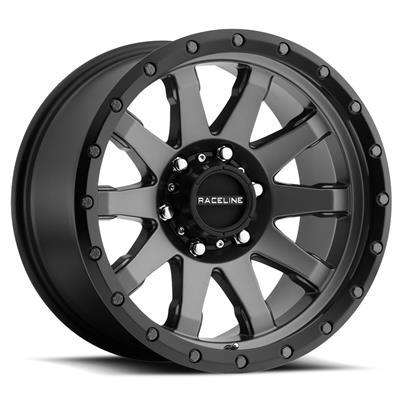

The Raceline Wheels Clutch RLW934G-21080-19 is a 20 x 10-inch aluminum spoke wheel in gunmetal with an 8 on 6.5 bolt pattern. It belongs to the 934 Clutch series, which Raceline presents as a consumer wheel built from its off-road racing experience.

An 8 on 6.5 pattern means eight studs on a 6.5 bolt circle. The 125 center bore centers the wheel on the hub, so it must match the hub to seat properly.

The -19 offset places the mounting face outboard, and the 4.75 backspacing sets how far the back of the wheel sits behind that face. Both affect brake caliper and fender clearance on a 10-inch-wide wheel.

Key features

  • 20-inch diameter and 10-inch width
  • 8 on 6.5 bolt pattern
  • Gunmetal spoke design
  • Aluminum construction
  • Part of the 934 Clutch series
  • 125 center bore, -19 offset and 4.75 backspacing

Gunmetal finish care

Gunmetal finishes hide road grime and brake dust better than bright finishes, but they still need routine washing to keep the surface even. Use a pH neutral cleaner and a soft brush, and rinse thoroughly so no residue is left in the spoke recesses where dust collects.

A 10-inch-wide wheel with -19 offset puts more of the tire outward, so the fender and suspension need a clearance check before the first drive. Once fitted, check the lug nuts after a short run, since a newly mounted wheel can settle slightly. Keep spare hardware on hand in case a stud or nut needs replacing.

  • Wash with pH neutral cleaner
  • Rinse the spoke recesses fully
  • Check the nuts after a short run

Specifications

Brand Raceline Wheels
Part number RLW934G-21080-19
Series 934 Clutch
Wheel diameter 20 inches
Wheel width 10 inches
Bolt pattern 8 on 6.5
Center bore 125
Offset -19
Backspacing 4.75
Style Spoke
Finish Gunmetal
Construction Aluminum

Vehicle fitment

Universal Fit is the label Raceline gives this wheel, and no vehicle is named. The 8 on 6.5 pattern, 125 center bore and -19 offset must suit the hub together, so confirm all three before choosing.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Lug seat style must be matched to the wheel, so choose fasteners to suit before mounting. Confirm the 125 center bore and eight-stud 6.5 pattern against the hub. A mismatched center bore will stop the wheel from centering on the hub, so do not force the fit.

What’s included

Confirm whether lug nuts, caps or valve stems come with this wheel before installing.

SKU: RLW934G-21080-19 Categories: ,

Questions & Answers

Will RLW934G-21080-19 fit my vehicle?

It is not tied to any named vehicle. Universal Fit is a label, so check the 8 on 6.5 pattern, 125 center bore, -19 offset and 10-inch width against your hub and clearances before choosing this wheel.

What bolt pattern does this gunmetal 20-inch wheel use?

It uses an 8 on 6.5 bolt pattern, meaning eight studs on a 6.5 bolt circle. The center bore is 125, the offset is -19, and backspacing is 4.75. The wheel is 20 by 10 inches.

Is this wheel from the 934 Clutch series?

Yes, it belongs to Raceline's 934 Clutch series. Load rating, weight and included hardware need confirming before ordering, so check these with the seller if they matter for your setup.

How should wheel nuts be torqued on a 10-inch-wide wheel?

Tighten the lug nuts in a star pattern in several passes, and use a torque wrench set to the value for your vehicle. Recheck the nuts after the first drive, since a new wheel can settle. Torque values depend on the stud size and vehicle, so confirm them for your setup.
