  • SGX Series cylinder assist gearbox for 1968-1976 full-size GM trucks and SUVs
  • 2WD, or 4WD with crossover steering conversion
  • 6AN ports, billet aluminum covers

Description

Overview

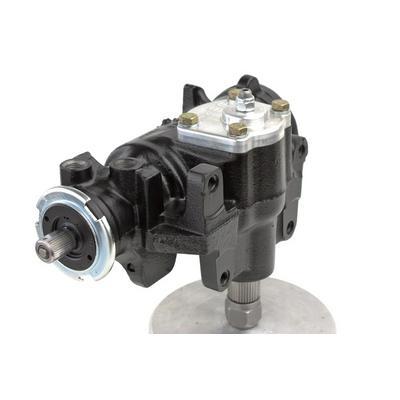

The PSC Steering cylinder assist steering gearbox with crossover steering SGX042SR (PSMSGX042SR) is an SGX Series power steering gearbox for full-size GM trucks and SUVs. It fits 1968-1976 2WD models and 1968-1976 4WD models that use a crossover steering conversion.

The SGX Series uses the largest piston assembly available for greater torque output, a 45mm sector shaft bearing, billet aluminum top and end covers and 6AN ports for adding a steering assist cylinder at any time.

It works in both two-wheel-drive and four-wheel-drive layouts, and the 6AN ports allow a later cylinder assist upgrade without changing the gearbox.

The gearbox suits restorations and builds on early full-size GM trucks.

Key features

  • SGX Series gearbox for GM trucks and SUVs
  • Largest piston assembly available
  • 45mm sector shaft bearing
  • Billet aluminum top and end covers
  • 6AN ports for adding a steering assist cylinder

Restoring an early steering system

Early full-size GM trucks often need a steering rebuild during restoration, and a gearbox upgrade is one of the more noticeable changes. A larger gearbox can improve control on a heavier vehicle, but the linkage, column and frame mounting all need to match the new unit. Planning the layout early avoids repeated fitting work later in the build.

Restored steering systems should be checked carefully before the vehicle is used. Look at the gearbox mounts, pitman arm and drag link for wear, and confirm that every fastener is tight after the first drive. Make sure the steering wheel returns to center smoothly and that the tires do not rub the body at full lock. Keep a record of the setup so future service is simpler.

  • Check mounts and linkage for wear
  • Confirm the wheel returns to center
  • Verify tire clearance at full lock

Specifications

Brand PSC Steering
Part number PSMSGX042SR
Series SGX
Sector shaft bearing 45mm
Ports 6AN
Covers Billet aluminum
Application 1968-1976 full-size GM truck/SUV, 2WD or 4WD with crossover steering conversion

Vehicle fitment

It fits 1968-1976 2WD full-size GM trucks and SUVs, and 1968-1976 4WD full-size GM trucks and SUVs with a crossover steering conversion.

Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

4WD vehicles need the crossover steering conversion for this gearbox.

Questions & Answers

What vehicles does the PSC SGX042SR fit?

PSC lists 1968-1976 full-size GM trucks and SUVs in 2WD, and 4WD models that have the crossover steering conversion. No specific model names are given.

Can I add a steering assist cylinder later?

Yes. The gearbox has 6AN ports for adding a PSC steering assist cylinder at any time, so the gearbox can be installed first and the cylinder added later.

Does a 4WD truck need anything special for this gearbox?

Yes. PSC lists 4WD applications only with the crossover steering conversion, so a 4WD GM truck still on its original steering setup is not covered.

Is a steering assist cylinder hard to add later?

It can be added later when the gearbox has the correct ports. Plan the mounting bracket, hose routing and clearance to the frame before ordering, and check the steering geometry after installation.
