Overview

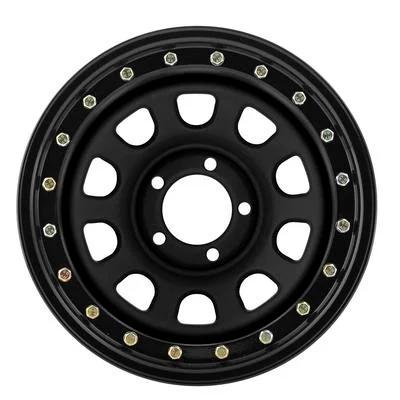

The Pro Comp Series 252 Street Lock in 15×8 inches is a flat black windowed steel wheel, part number PCW252-5865F, with a 5 on 4.5 bolt pattern. Pro Comp Steel Wheels offers this line in several sizes and backspacings, and this 8 inch wide flat black version is intended for off-road builds that need a durable steel wheel.
The wheel has a -19 offset, which sets the mounting face behind the centerline, and a 3.75 backspacing. The backspacing is the distance from the mounting face to the rear edge of the rim. The 83 center bore is the hub opening that centers the wheel during mounting.
Key features
- Windowed steel design with a flat black powder coat
- 15 inch diameter and 8 inch width
- 5 on 4.5 bolt pattern
- 83 center bore
- -19 offset and 3.75 backspacing
- Series 252 Street Lock line
Flat black wheel and hub prep
Clean the hub face and the back of the wheel before mounting, since rust, paint or grit between the surfaces can cause the wheel to wobble or loosen. A light wire brush and a degreaser work well for this. Keep the tapered seats of the lug nuts free of debris as well.
Flat black finishes show fingerprints and brake dust less than gloss but can look uneven with light scuffs, so regular washing keeps the wheel looking uniform. Windowed steel wheels also trap moisture around the cutouts, so drying them after rain helps limit surface rust. Plan to check the lug nuts after the first few drives and after each wheel removal. Store the wheel off the ground and out of direct sun when it is not mounted.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW252-5865F |
| Series | 252 Series Street Lock |
| Construction | Steel |
| Style | Windowed |
| Finish | Flat black powder coat (the spec sheet says black) |
| Diameter | 15 inches |
| Width | 8 inches |
| Bolt pattern | 5 on 4.5 |
| Center bore | 83 |
| Offset | -19 |
| Backspacing | 3.75 |
Vehicle fitment
Verify year, model and trim against your truck before buying. Match the 5 on 4.5 bolt pattern and 83 center bore to the hub, and check the -19 offset against the fender and steering on the vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Clean the hub face and the mounting surface of the wheel before setting it in place, so the wheel seats evenly. Recheck lug nut torque after the first drive on a new setup.
What’s included
The 15×8 windowed wheel (PCW252-5865F) is sold alone, with the center cap and lug nuts purchased separately.
Not included: Center cap and lug nuts for part PCW252-5865F, which are sold separately.
