Overview

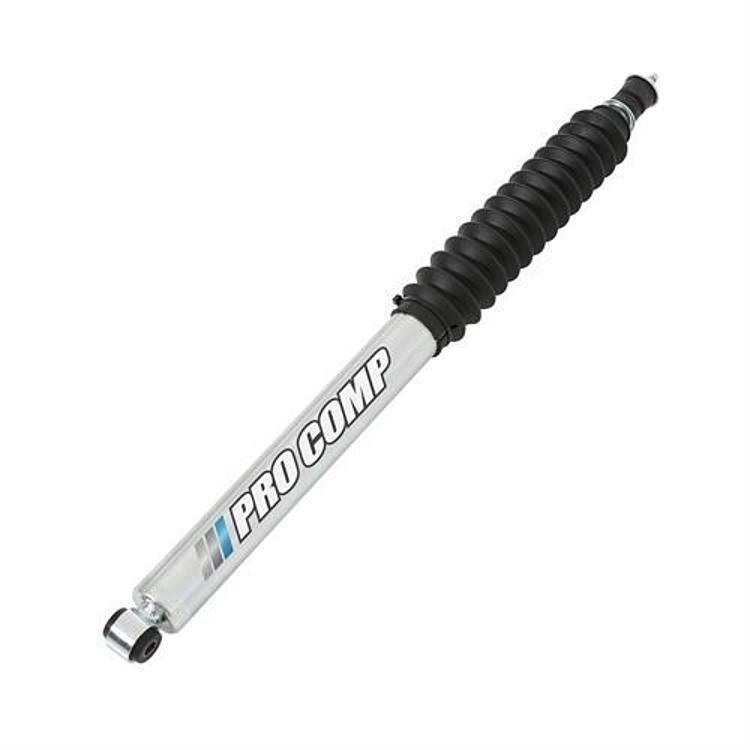

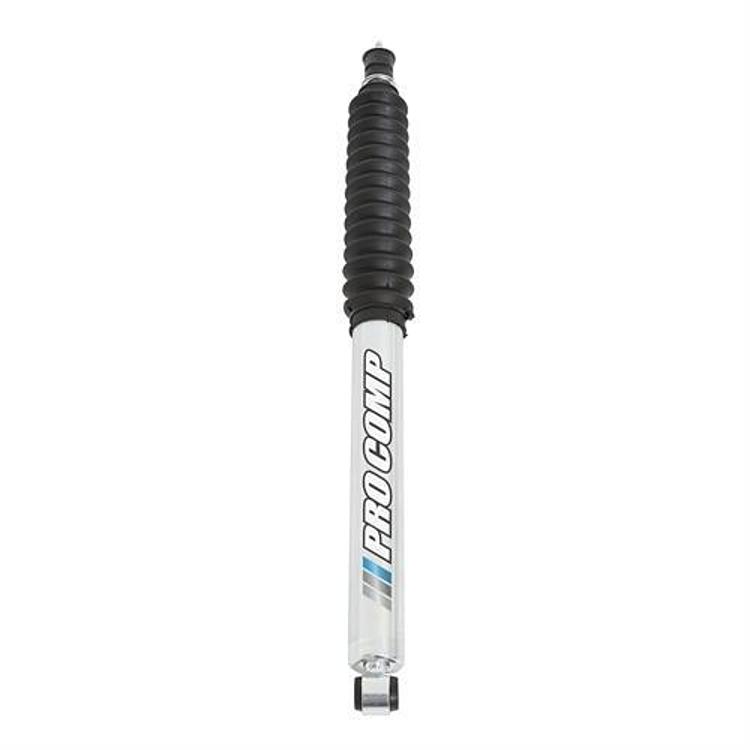

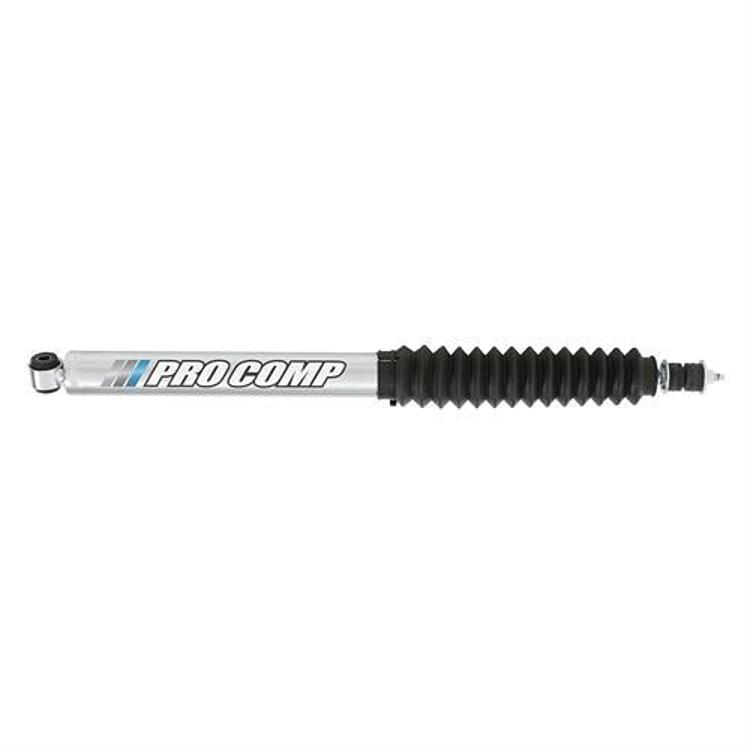

The Pro Comp ZX2066 is a front Pro Runner SS monotube shock absorber for the 2004–2008 Ford F-150. It clears 33 inch tires on a vehicle with 0 to 6 inches of lift. The shock keeps the factory coil spring in place, so the coil is not included with the shock.
The SS version uses a nitrogen charged monotube body with a 2 inch diameter. The gas charge reduces cavitation during compression and rebound and helps the shock shed heat. The body is zinc plated and clear coated, and the multi-stage valving is tuned to each application.

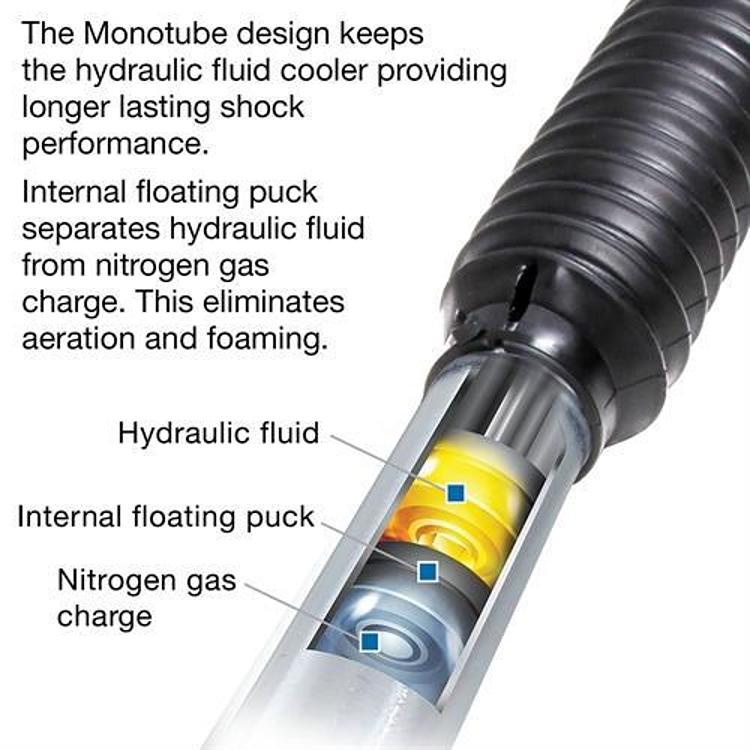

In a monotube, the nitrogen charge sits behind a floating piston, which keeps the oil under pressure and helps it resist foaming on hard compression. The ZX2066 uses that layout in the SS version, with a 2 inch body that Pro Comp describes as nitrogen charged and zinc plated.
Key features
- Front position, direct fit
- Clears 33 inch tires
- Retains the factory coil spring
- Nitrogen charged monotube with gas charged design
- Zinc plated, clear coated finish on a 2 inch body
Before you install
A shock absorber controls how quickly the spring and the wheel move, so its job depends on the vehicle it is fitted to. On a truck that keeps its factory coil, the shock works alongside the existing spring rather than replacing it. Before installation, inspect the coil for sag, cracks and a shifted seat, because a worn spring changes the ride height the new shock sees.
Clean the upper and lower mounting points and replace worn bushings or hardware while the shock is off. Tighten fasteners to the torque in the vehicle’s service information, then check them again after the first few drives. Make sure the shock moves freely through its full travel without touching the tire, fender or brake lines.
- Inspect the factory coil for sag and cracks
- Replace worn upper and lower bushings
- Recheck fasteners after the first drives
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | ZX2066 |
| UPC | 614901036046 |
| Shock series | Pro Runner SS |
| Position | Front |
| Lift height | 0 to 6 in. |
| Tire clearance | 33 in tires |
| Body diameter | 2 in |
| Charge | Nitrogen, gas charged |
| Finish | Zinc plated, clear coated |
| Coil spring | Factory coil retained, not included |
Vehicle fitment
It is a direct fit for the 2004–2008 Ford F-150. The 2009–2013 F-150 uses a different Pro Comp part number.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The shock retains the factory coil spring, so the existing coil stays in use. Check your lift height against the 0 to 6 inch range and your tire size against the 33 inch clearance before driving the truck.
What’s included
One front Pro Runner SS monotube shock. The coil spring is not included.
