Overview

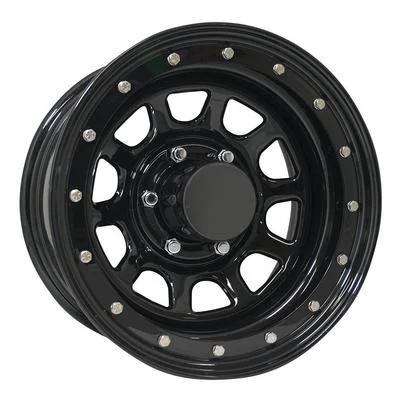

The Pro Comp Series 252 Street Lock in 15×8 inches is a gloss black windowed steel wheel, part number PCW252-5866, with a 5 on 4.5 bolt pattern. It is a zero-offset version of the 252 line, which Pro Comp Steel Wheels offers in several offsets and backspacings for off-road use.
The 0 offset places the mounting face on the centerline of the rim. The 4.5 backspacing measures the room between the mounting face and the back edge of the wheel. The 83 bore is the hub opening used for centering, and the steel body carries a powder coat finish.
Key features
- Windowed steel design with a gloss black powder coat
- 15 inch diameter and 8 inch width
- 5 on 4.5 bolt pattern
- 83 center bore
- 0 offset and 4.5 backspacing
- Series 252 Street Lock styling
Zero offset in practice
A zero offset puts the mounting face on the centerline, so the wheel sits neither pushed in nor pushed out compared with a negative offset. That placement can change how the tire clears inner components and how the wheel sits against the brake parts. Measuring the spacing from the hub to the caliper gives a practical starting point.
Steel wheels with a windowed look collect debris, so the windows and the rim’s back edge should be inspected regularly. Check the bead seat for rust that can keep the tire from sealing. Wheel bearing wear and worn ball joints show up faster when a tire carries more load on an unusual offset, so inspect them during routine service. Keep the tire pressure set to the vehicle’s placard.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW252-5866 |
| Series | 252 Series Street Lock |
| Construction | Steel |
| Style | Windowed |
| Finish | Gloss black powder coat (the spec sheet says black) |
| Diameter | 15 inches |
| Width | 8 inches |
| Bolt pattern | 5 on 4.5 |
| Center bore | 83 |
| Offset | 0 |
| Backspacing | 4.5 |
Vehicle fitment
No vehicle, model year or chassis code is confirmed for this windowed wheel. Its 5 on 4.5 pattern and 83 center bore determine the hub match, and the 0 offset with a 4.5 backspacing should be compared with the clearance of the vehicle you plan to use. Pro Comp’s universal fit label is not a substitute for that check.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A zero-offset wheel sits closer to the centerline than a negative-offset wheel, so the tire will sit a little farther in. Check brake caliper clearance through the windows and the back of the rim before mounting.
What’s included
The 15×8 windowed wheel (PCW252-5866) comes alone, without a center cap.
Not included: Center cap and lug nuts for part PCW252-5866, which are sold separately.
