Overview

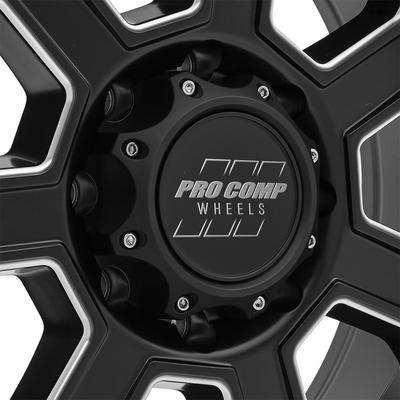

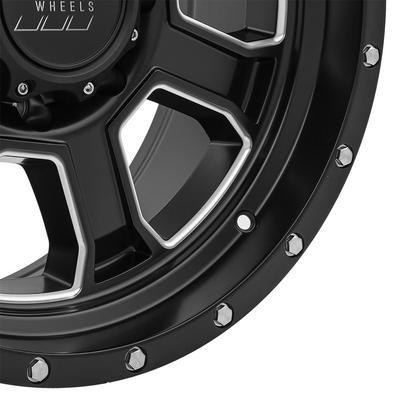

The Pro Comp 43 Series Sledge 20×9 wheel, part number PXA5143-2970, is a 20-inch aluminum spoke wheel with a 9-inch width. It is the eight-lug version of the Sledge, with an 8 on 170 bolt pattern and a satin black finish with milled detail.
The wheel has a 131 center bore, a 0 offset and a backspacing of 5. It is built with low-pressure casting and carries a load rating of 2500 to 3650 lbs per wheel. It is universal fit and is not assigned to a vehicle.
Key features
- Low-pressure cast aluminum
- 20-inch diameter and 9-inch width
- 8 on 170 bolt pattern
- Center bore 131
- Offset 0 and backspacing 5
- Satin black with milled accents
Eight-lug fit and checks
Eight-lug hubs sit on heavier trucks and sport utility vehicles, and the stud layout must match exactly. Confirm the eight studs sit on the 170 circle before buying, and check the center bore against the hub. A larger bore can be centered with hub-centric rings.
A 0 offset keeps the face centered, but the caliper still needs room. Measure brake clearance with the wheel on the hub. Lug nut seat type should match the wheel holes, and threads should be clean and undamaged before mounting.
Tire size follows the rim. Width and diameter change sidewall height and the load each tire carries, so compare the tire with the original before ordering. Check lug torque after the first drives and inspect the wheel for cracks near the spokes during routine checks.
- Confirm eight studs on the 170 circle
- Match lug nut seat type to the wheel
- Measure caliper clearance on the mounted wheel
- Inspect spokes for cracks during routine checks
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5143-2970 |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 8 on 170 |
| Center bore | 131 |
| Offset | 0 |
| Backspacing | 5 |
| Load rating | 2500 to 3650 lbs per wheel. |
| Style | Spoke |
| Finish | Satin black, milled |
| Construction | Aluminum |
| Series | 43 Series Sledge |
Vehicle fitment
This eight-lug wheel is universal fit and is not assigned to a vehicle. Confirm the 8 on 170 hub and 131 center bore before ordering, then check caliper clearance for the 20-inch size.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
An 8 on 170 pattern is an eight-lug layout, so it cannot be substituted for five- or six-lug hubs. Measure the hub and confirm the center bore before mounting.
The 8 on 170 eight-lug pattern and 131 center bore define the hub fit. The 0 offset and 5 backspacing keep the mounting face centered, while the 9-inch width and 20-inch diameter determine tire options. Confirm the bolt pattern and caliper room before ordering.
What’s included
One 20×9 satin black wheel with milled accents is included. Confirm the package contents suit your installation before starting.
