Pro Comp 05 Series Torq Wheel, 17x8 with 6x5.5 Bolt Pattern – Graphite – 2605-7883

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x8 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17×8 aluminum split-spoke wheel in graphite
  • 6 on 5.5 bolt pattern, center bore 108
  • Offset 0; backspacing 4.5
  • 05 Series Torq design

Description

Overview

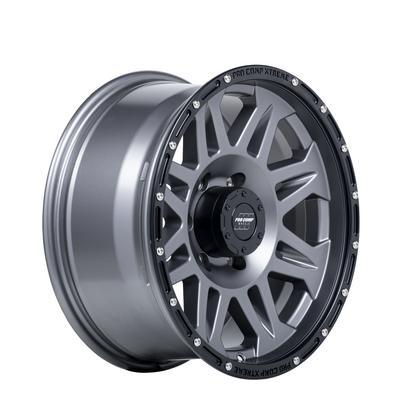

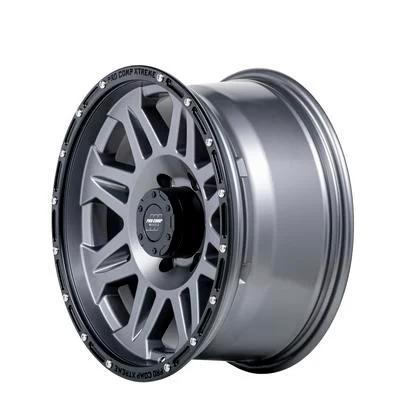

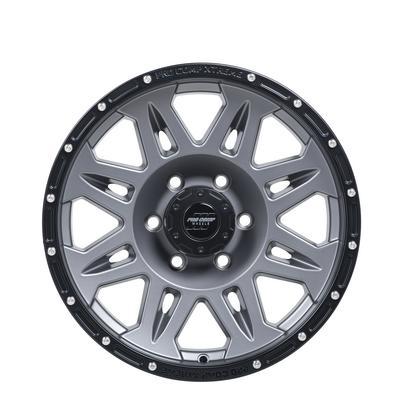

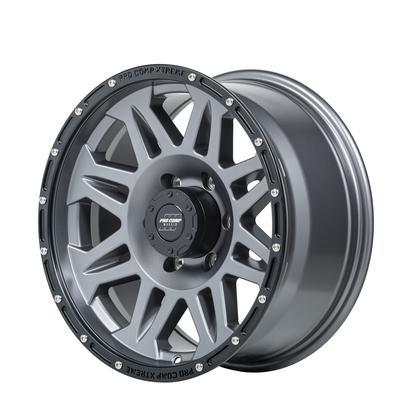

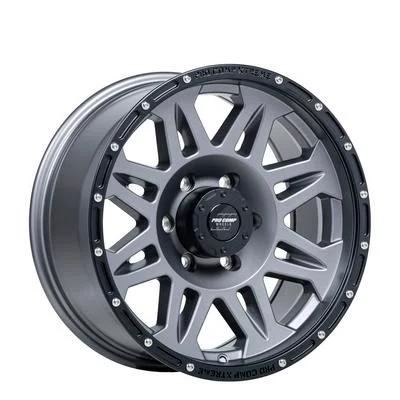

The Pro Comp PXA2605-7883 is a 17×8 graphite aluminum wheel in the 05 Series Torq line. It has a split-spoke face, a 6 on 5.5 bolt pattern, a center bore of 108, an offset of 0 and a backspacing of 4.5.

The 05 Series is designed for performance trucks and sport utility vehicles and uses low-pressure cast aluminum. The graphite finish is the darker choice for this 17×8 size, alongside a matte bronze version.

Confirm the 6 on 5.5 bolt pattern and the 108 center bore before buying, since those two numbers decide whether the wheel mounts to the hub. The 0 offset and 4.5 backspacing place the face at the centerline, so check brake and suspension clearance on your truck.

The graphite finish is paired with the 6 on 5.5 pattern in this 17×8 Torq. The cast aluminum body is made with low-pressure casting, and the wheel belongs to the 05 Series.

Key features

  • Graphite finish
  • Split-spoke aluminum design
  • 6 on 5.5 bolt pattern
  • Center bore 108
  • Offset 0 and backspacing 4.5

Hub-centric fit basics

Hub-centric fit means the wheel’s center bore sits snugly on the hub, so the hub carries the load and the lug nuts only clamp the wheel. A matching bore is a practical advantage on rough trails, because the lugs do not take all the vibration. Where the bore is larger than the hub, hub-centric rings are commonly used to fill the gap and center the wheel correctly.

Wheel weight and tire choice also change how the suspension and steering respond. A heavier aluminum wheel with a larger tire adds unsprung mass, which can slow suspension movement. Keeping tire diameter close to the original keeps speedometer readings and gearing accurate, and it avoids rubbing as the suspension moves.

  • Hub-centric rings for any bore gap
  • Torque lug nuts in a star pattern
  • Check wheel bearings before a long trip
  • Keep tire diameter near stock

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA2605-7883
Diameter 17 inches
Width 8 inches
Bolt pattern 6 on 5.5
Center bore 108
Offset 0
Backspacing 4.5
Style Split spoke
Finish Graphite
Construction Aluminum
Series 05 Series

Vehicle fitment

It is a universal-fit wheel. The 6 on 5.5 pattern, 108 center bore and 0 offset all affect fitment, so confirm each against your truck before buying.

Tire size and load rating must suit a 17×8 wheel. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One wheel. Inspect the package contents when it arrives, before mounting.

SKU: PXA2605-7883 Categories: ,

Questions & Answers

Is this wheel vehicle-specific?

It is a universal-fit wheel, so it is not built for one truck. Match the 6 on 5.5 bolt pattern, 108 center bore and 0 offset to your vehicle before ordering.

What size is the PXA2605-7883?

It is a 17 by 8 inch wheel with a 6 on 5.5 bolt pattern. The center bore is 108, the offset is 0 and the backspacing is 4.5.

Does the wheel include a center cap?

Look over the package contents for a center cap, and confirm the 6 on 5.5 pattern and 108 center bore against the hub.

Do I need hub-centric rings with this wheel?

Only if the wheel's center bore is larger than your hub. A snug match needs no ring. Measure the hub before ordering, and if a gap exists, use rings of the correct size so the wheel centers on the hub rather than on the lugs.
