Overview

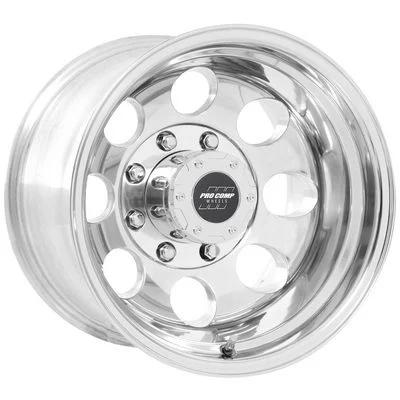

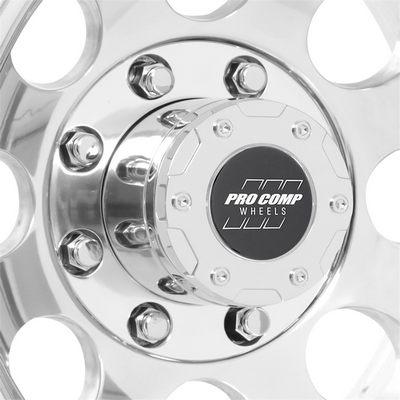

The Pro Comp PXA1069-6882 is a 16×8 polished aluminum wheel from the Pro Comp 69 Series Vintage line, with a Holes style and an 8 on 6.5 bolt pattern. It is sold as one wheel with a center bore of 110, a zero offset and a backspacing of 4.5.
The Holes style 69 Series Vintage wheel is low-pressure cast aluminum with a polished finish. This 16×8 version has a zero offset and 4.5 backspacing, which places the mounting face at the centerline. The 69 Series line is built with a high offset design for brake clearance, while this particular wheel sits at zero offset.
Key features
- Low-pressure cast aluminum construction
- Holes style face
- 16-inch diameter, 8-inch width
- 8 on 6.5 bolt pattern
- Center bore of 110
- Zero offset with 4.5 backspacing
Zero offset in practice
Zero offset places the mounting face at the wheel’s centerline, so the tire sits evenly between the inner and outer wheel well. The balance affects scrub radius and how the steering responds, and it changes the inner clearance compared with a negative-offset wheel. On an 8-inch width, tire choice matters because a narrow rim can change sidewall bulge and bead seating compared with wider rims.
A centered wheel sits closer to the suspension parts on the inner side, so check ball joints, control arms and brake lines with the tire mounted. A full steering lock test shows whether the tire rubs against the frame or the liner. Look over the lip after rough trail use, and keep torque on the lug nuts consistent. Replace any bent or cracked rim rather than repairing it.
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA1069-6882 |
| Series | 69 Series Vintage (Classic) |
| Style | Holes |
| Construction | Aluminum |
| Finish | Polished |
| Diameter | 16 inches |
| Width | 8 inches |
| Bolt pattern | 8 on 6.5 |
| Center bore | 110 |
| Offset | 0 |
| Backspacing | 4.5 |
Vehicle fitment
No vehicle is named for this wheel. Universal fit on the specifications does not identify a truck or SUV. An 8 on 6.5 hub with a 110 center bore is the first match to check, and the zero offset needs a clearance check at the brake parts.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Eight lug holes at 6.5 must line up with the hub before any other check. Test-fit the 8-inch rim with the tire on the vehicle to confirm the caliper and steering parts have room.
What’s included
Eight lug holes at 6.5 must line up with the hub before any other check. Test-fit the 8-inch rim with the tire on the vehicle to confirm caliper and steering clearance, since a zero offset places the mounting face at the centerline.
