Overview

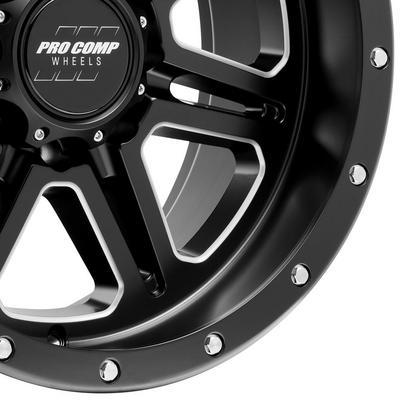

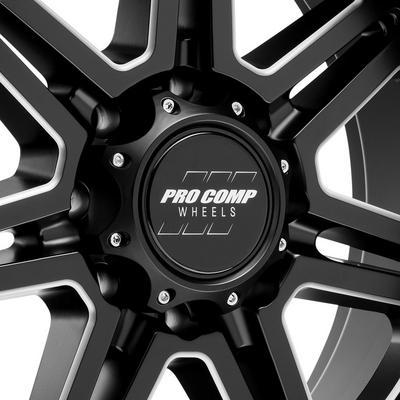

The Pro Comp PXA5162-213647 is a 20×10 aluminum split-spoke wheel from the Pro Comp 62 Series Apex line, finished in satin black milled and set up for a 6 on 135 bolt pattern. It is sold as a single wheel with a center bore of 87.
Built with low-pressure casting, this wheel is rated in the 2500 to 3650 lbs per wheel range of the Pro Comp alloy line. It is 10 inches wide with a -18 offset and 4.75 backspacing, so the rim sits farther outboard than a zero-offset wheel of the same size.
Key features
- Low-pressure cast aluminum
- Split-spoke design
- 20-inch diameter and 10-inch width
- 6 on 135 bolt pattern
- Center bore of 87
- Offset -18 with 4.75 backspacing
Choosing tires for wide rims
A 10-inch rim can take a range of tire widths, so pick the tire from the rim’s acceptable width range rather than the width alone. A tire that is too narrow changes the sidewall shape, and one that is too wide can rub at the fender. Confirm the tire’s load rating matches the vehicle’s needs.
Tire pressure has more effect on a wide rim than many expect, because the sidewall bulges differently. Inspect the bead each time a tire comes off the rim, and keep the valve stem clean. When rotating tires, watch for uneven wear at the edges, which can signal a fitment or alignment problem.
- Match tire width to the rim range
- Check bead seating after remounting
- Inspect lug holes for corrosion
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5162-213647 |
| Series | 62 Series Apex |
| Style | Split spoke |
| Construction | Aluminum |
| Finish | Satin black milled |
| Diameter | 20 inches |
| Width | 10 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 87 |
| Offset | -18 |
| Backspacing | 4.75 |
| Load rating | 2500 to 3650 lbs per wheel (Pro Comp alloy range) |
Vehicle fitment
No vehicle is named for this wheel. The universal fit label does not confirm a model. The 6 on 135 pattern and 87 center bore have to match the hub, then the -18 offset needs a clearance check against the fender.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Six lug holes at 135 must line up exactly with the hub. Test-fit with the tire to check clearance, since the -18 offset and 10-inch width place the tire outward from the mounting face. The 10-inch width needs a matching tire, so check the tire’s width range before ordering.
What’s included
One 20×10 aluminum wheel. Fasteners for your hub are a separate check before installation.
