Overview

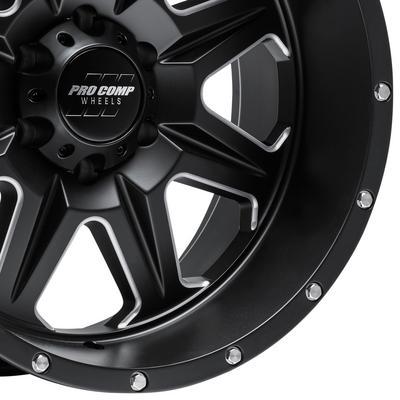

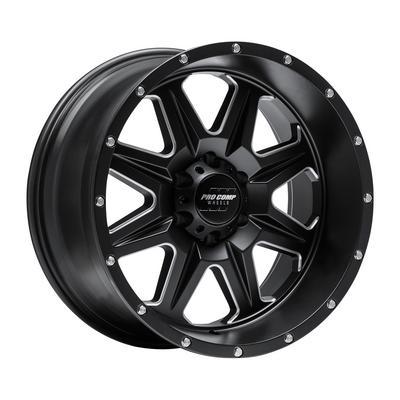

The Pro Comp PXA5163-218547 is a 20×10 aluminum spoke wheel from the Pro Comp 63 Series Recon line, in satin black milled with a 5 on 5.5 bolt pattern. It is sold as one wheel with a center bore of 108.
Pro Comp built the Recon with low-pressure casting and rates its alloy wheels from 2500 to 3650 lbs per wheel. This 10-inch-wide wheel has an offset of -18 and a backspacing of 4.75.
Key features
- Low-pressure cast aluminum
- Spoke face style
- 20-inch diameter and 10-inch width
- 5 on 5.5 bolt pattern
- Center bore of 108
- Offset -18 with 4.75 backspacing
Spoke wheels on trail use
Spoke wheels show more of the brake rotor and caliper through the face, which makes brake cooling easy to see but also makes it easier to notice mud and grit collecting behind the spokes. On trail use, a spoke design tends to shed mud more readily than a solid face, though the spoke gaps still need a rinse after a muddy run. Keep the valve stem area clear so air can be checked without difficulty.
A 10-inch rim with a negative offset places the tire outward, so impacts on rocks and ruts can reach the tire sidewall more easily. Lower pressures on rough ground increase the chance of the bead lifting, so set pressure for the terrain. Inspect the spokes and bead area after hard trail runs.
- Rinse spoke gaps after muddy runs
- Keep the valve stem area clear
- Check bead seating after airing down
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5163-218547 |
| Series | 63 Series Recon |
| Style | Spoke |
| Construction | Aluminum |
| Finish | Satin black milled |
| Diameter | 20 inches |
| Width | 10 inches |
| Bolt pattern | 5 on 5.5 |
| Center bore | 108 |
| Offset | -18 |
| Backspacing | 4.75 |
| Load rating | 2500 to 3650 lbs per wheel (Pro Comp alloy range) |
Vehicle fitment
Fit is set by the hub rather than a model. Check the 5 on 5.5 hub and 108 center bore first, then the -18 offset against the fender and brake caliper.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use only a five-lug hub at 5.5 with a matching 108 center bore. A 10-inch rim with -18 offset needs a test fit with the tire to confirm clearance at the brake caliper. A 10-inch rim at -18 offset needs its inner clearance checked with the tire fitted, not with the wheel alone. The 108 center bore has to seat on the hub, and the 4.75 backspacing sets how the rim clears inner parts, so measure both.
What’s included
One 20×10 aluminum spoke wheel, sold individually.
