Pro Comp 69 Series Vintage, 16x8 Wheel with 5 on 150 Bolt Pattern – Polished – 1069-6855

Pro Comp Alloy Wheels

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA1069-6855: 16×8 polished aluminum Vintage wheel, 69 Series Classic
  • 5 on 150 bolt pattern, center bore 108, offset -12, backspacing 4
  • Holes style face, low-pressure cast construction
  • No vehicle is named for this wheel

Description

Overview

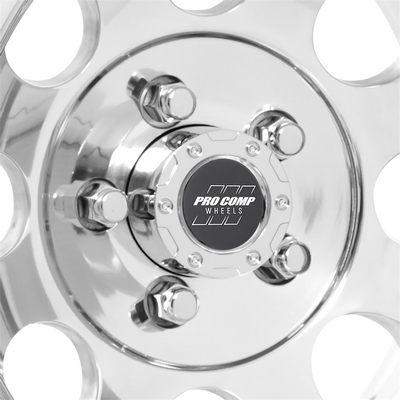

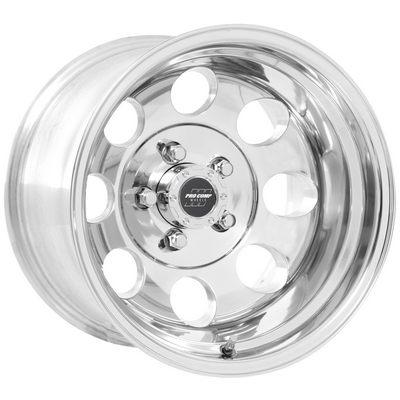

The Pro Comp PXA1069-6855 is a 16×8 polished aluminum wheel from the Pro Comp 69 Series Vintage line, with a Holes style face and a 5 on 150 bolt pattern. It is sold as one wheel with a center bore of 108 and an offset of -12.

Vintage alloys are low-pressure cast for a head-turning look with light weight and a durable finish. This 8-inch-wide wheel has a backspacing of 4. The line is designed with a high offset for brake clearance.

Key features

  • Low-pressure cast aluminum
  • Holes style face
  • 16-inch diameter, 8-inch width
  • 5 on 150 bolt pattern
  • Center bore of 108
  • Offset -12 with 4 backspacing

Choosing a Vintage wheel

Bolt pattern, center bore and offset decide whether a wheel can be mounted safely, so these numbers come first. The hub must match the wheel’s bolt pattern exactly, and a hub-centric center bore helps the wheel sit true. Offset sets where the mounting face sits relative to the centerline, which determines clearance at the brake caliper, fender and suspension.

Backspacing is the distance from the mounting face to the back of the wheel, and it affects how far the tire sits inside the fender. Check the tire size and load rating against the vehicle’s needs before buying. After mounting, torque the lug nuts in a star pattern, re-check after a short drive, and inspect the rim for stone chips and cracks periodically.

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA1069-6855
Series 69 Series Vintage (Classic)
Style Holes
Construction Aluminum
Finish Polished
Diameter 16 inches
Width 8 inches
Bolt pattern 5 on 150
Center bore 108
Offset -12
Backspacing 4

Vehicle fitment

No vehicle is named for this wheel. Universal fit on the specifications does not tie the wheel to a model. A five-lug hub at 150 with a 108 center bore is the first check, followed by the -12 offset against the vehicle’s brake and fender clearance.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Use a five-lug hub at 150 with a matching center bore. A test fit with the tire mounted confirms clearance at the brake caliper before the wheel is used on the trail.

What’s included

One 16×8 aluminum wheel. Check the hub hardware against your installation before mounting.

SKU: PXA1069-6855 Categories: ,

Questions & Answers

What bolt pattern is the PXA1069-6855?

It has a 5 on 150 bolt pattern and a center bore of 108. The offset is -12 and the backspacing is 4, so match all four figures to the hub.

What finish does this 16x8 Vintage wheel have?

It is polished, on an aluminum Holes style wheel from the 69 Series Classic range. The 5 on 150 pattern, 108 bore and -12 offset are the measurements that decide fit.

Does the PXA1069-6855 come with lug nuts?

Check the hub hardware, including lug nuts and any center cap, against your installation before mounting the wheel on the truck.

Why does offset matter when changing wheels?

Offset sets where the mounting face sits relative to the centerline, which affects clearance at the brake caliper, fender and suspension. A wheel with the wrong offset can rub or load bearings unevenly. Compare the figure with your current wheel before buying, and test-fit with a tire mounted.
