Overview
The Pro Comp 3-inch Lift Kit with PRO-X Shocks, part number EXPK5058T (kit K5058T), is a stage 1 suspension lift for 1979 to 1985 Toyota Pickup trucks and 1984 to 1985 Toyota 4Runner models. It fits the Pickup across its Base, DLX, DLX Turbo, SR5 and SR5 Turbo versions and the 4Runner DLX and SR5.
The kit lifts the truck 3 inches at stage 1, with a listed lift height range of 0 to 3.5 inches. The rear uses an Add-A-Leaf lift, and PRO-X shocks are listed at the front and the rear and are included. Pro Comp lists 32 inches as the tire size.
Key features
- 3-inch stage 1 suspension lift

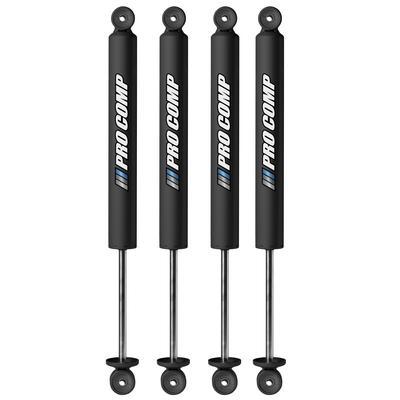

- PRO-X shocks at the front and rear, included
- Add-A-Leaf rear lift
- Designed for 32-inch tires.
- Lift height range of 0 to 3.5 inches
Caring for an older Toyota frame
Trucks from the late 1970s and early 1980s often have leaf springs, shackles and frame sections that have seen many years of road salt and weather. Before installing an Add-A-Leaf rear lift, inspect the spring hangers, shackle pins and frame rails for rust or cracks, and address any weakness first. A lift adds stress to these points, so sound parts matter.
An Add-A-Leaf lift changes the rear ride height and driveline angle, so check the U-joints and the driveshaft after installation. Look for vibration, clunking over bumps and uneven tire wear. Keep the shocks in good condition, since a lifted rear with worn shocks can wander on rough roads. Recheck fastener torque after the first few drives and periodically afterward.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK5058T |
| Kit code | K5058T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 3 inches stage 1; range 0 to 3.5 inches |
| Tire size | 32 inches |
| Rear lift method | Add-A-Leaf |
| Rear lift component | Add-A-Leaf |
| Shocks included | Yes |
| Front shocks | PRO-X |
| Rear shocks | PRO-X |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1979 to 1985 Toyota Pickup, across the Base, DLX, DLX Turbo, SR5 and SR5 Turbo versions, and the 1984 to 1985 Toyota 4Runner in the DLX and SR5 versions. Confirm fit for your vehicle’s year, model and trim before ordering.
The list does not include the 1986 and newer Toyota Pickup or the 4Runner from 1986 onward. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The Add-A-Leaf rear lift changes the rear ride height and the driveline angle, so check the driveline and the alignment after installation.

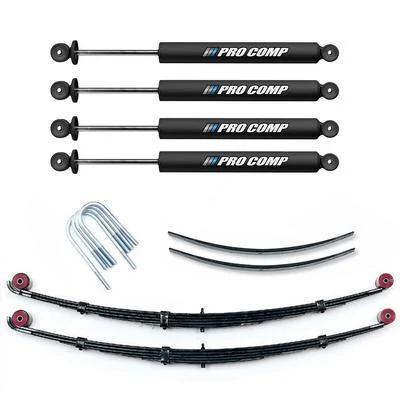

What’s included
The 3-inch stage 1 lift kit with PRO-X front and rear shocks.
