Ox Locker Dana 35 27 Spline 3.55 Up Air Selectable Locker – D35-355-27-AIR

Ox Locker

Shop Ox Locker Differentials on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Air selectable locker for a Dana 35 rear axle with 27 splines and 3.55 and up gears (part number OXLD35-355-27-AIR)
  • Open for street driving, full spool when engaged
  • Forged cover with an integral air cylinder
  • External air source required and not included

Description

Overview

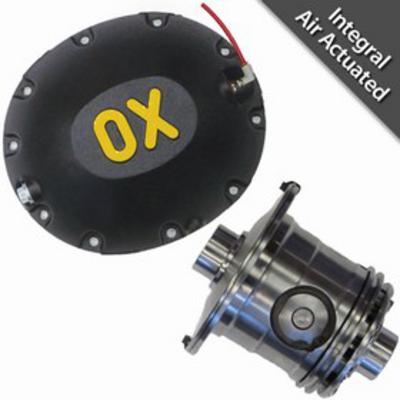

The Ox Locker Dana 35 27 Spline 3.55 Up Air Selectable Locker, part number OXLD35-355-27-AIR, is an air-operated selectable locker for the rear Dana 35 axle with 27 splines and 3.55 and up gear ratios.

The locker operates in open mode for smooth street driving and switches to full spool for traction when it is needed. A switch changes the two modes, and the forged cover’s integral air cylinder supports smooth, reliable operation. The components are fully machined in the U.S.A. An external air source is required and is not included.

Key features

  • Open mode for smooth street driving
  • Full spool mode for the most traction available
  • Switch change between the two modes
  • Forged differential cover with an integral air cylinder
  • Components fully machined in the U.S.A.

Matching the Dana 35 rear axle

The Dana 35 is a rear axle used in a range of older 4×4 builds, so the housing, axle shaft spline count and carrier size should be confirmed before a locker is chosen. A selectable locker changes how power splits between the wheels, which helps when one wheel loses grip, but it also means the axle parts see more load when fully locked.

Locked axles can make tight turns feel harder on pavement, so many drivers keep the locker open on street days and engage it on trails. Gear ratio and tire size also affect how the locker behaves, and a larger tire with a locked rear can strain the drivetrain. Check the axle shafts, bearings and gears for wear before installing the unit.

  • Confirm the axle housing and spline count
  • Inspect the gears and bearings before fitting
  • Keep tire size in mind when setting gear ratio

Specifications

Brand Ox Locker
Part number OXLD35-355-27-AIR
Popular axle manufacturer Dana
Axle location Rear
Axle type Dana 35
Axle spline 27 splines
Gear ratio 3.55 and up
Differential type Selectable locker, air actuated
Air supply External air source, not included

Vehicle fitment

It is made for a rear Dana 35 axle with 27 splines. Confirm the axle type, spline count and 3.55 and up gear ratio before ordering.

Check the Dana 35 axle and the 3.55 and up ratio against your housing and gears. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The locker needs an external air source, which is not included. Supply the air system before fitting the locker, and check the gear ratio before installation.

What’s included

The locker and forged cover are included. An external air source is not included.

Questions & Answers

Does the Ox Locker OXLD35-355-27-AIR fit a Dana 35 rear axle?

Yes. It is made for a rear Dana 35 axle with 27 splines. Confirm the axle type and spline count before ordering, since fit depends on the housing.

What gear ratio is this Dana 35 locker for?

The locker is designed for 3.55 and up gear ratios. Confirm your gears are 3.55 or higher before ordering and check the ratio against your housing before installation.

Is an air source included with the locker?

No. An external air source is required to operate the locker, and it is not included with the unit. Plan to supply the air system separately before installation begins.

Can this locker be used on a daily driven vehicle?

Yes, with some habits. The locker is open for street driving, so it behaves like a standard axle until it is engaged. Engage it at low speed on a loose surface and disengage it before tight turns on pavement to reduce tire scrub and drivetrain stress.
