Eaton Dana 30 27 Spline 3.73 Up E-Locker – 19818-020

Eaton

Shop Eaton Differentials on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Electronic selectable locker for a front Dana 30 axle with 27 splines (part number 19818-020)
  • Push-button operation, open to locked
  • Needs 12 volt power only, with no air lines or cables
  • Universal fit for Dana 30 standard front axles by type

Description

Overview

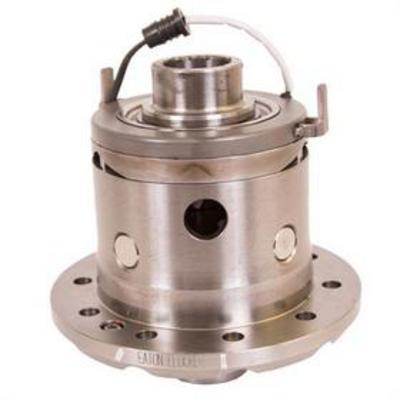

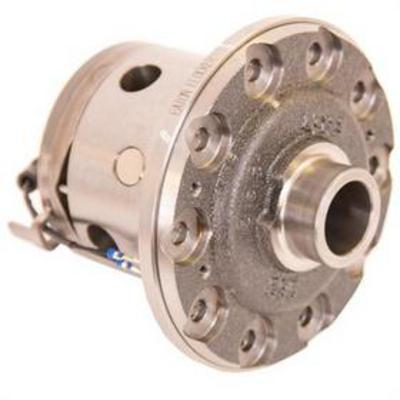

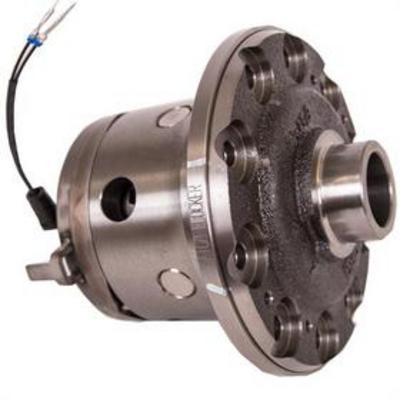

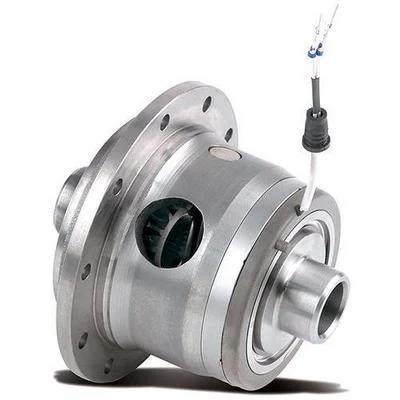

The Eaton Dana 30 27 Spline 3.73 Up E-Locker, part number 19818-020, is an electronic selectable locker for the front of a Dana 30 standard axle with 27 splines. The gear ratio is 3.73 and up, and the unit is universal fit by axle type.

The E-Locker is an electronic push-button selectable locker that goes from open to spool with the press of a button. It has no air lines to leak and no cables to get hung up. It needs only 12 volt power to operate.

Key features

  • Electronic push-button selectable locker
  • Goes from open to spool with one press of a button
  • No air lines or cables to leak or catch
  • Requires only 12 volt power
  • Dana 30 standard front axle, 27 splines

Choosing and setting up a locker

An electronic locker is most useful when one wheel can lose grip, such as on loose dirt, mud or a steep climb. Because it locks the axle only on demand, daily driving stays close to an open differential. Setting up the switch and wiring correctly matters as much as the locker itself, since a loose connection can leave the unit unable to engage.

Before installing, check the gears and carrier against the 3.73 and up ratio, and confirm the axle is a Dana 30 standard with 27 splines. Inspect the gear oil and cover seal during the install, and route the wiring away from heat and moving parts.

  • Route the switch wiring away from heat sources
  • Check gear oil level after the first drives
  • Inspect the cover seal at routine service

Specifications

Brand Eaton
Part number EAT19818-020
Axle location Front
Axle type Dana 30 standard
Axle spline 27 splines
Axle shaft diameter 1.16 inches
Cover bolt quantity 10
Differential case design Dana 30
Power 12 volt

Vehicle fitment

No vehicle is named for this locker. It is universal fit for a Dana 30 standard front axle with 27 splines, so confirm the axle type and spline count before ordering.

The title’s 3.73 and up gear ratio is the carrier to check against your gears. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Wiring and switch hardware are not included. Check the package contents against your installation before starting.

Questions & Answers

Does the Eaton 19818-020 fit a Dana 30 front axle?

It fits a Dana 30 standard front axle with 27 splines and a 10-bolt cover. Confirm the axle matches your vehicle before ordering, since no vehicle is named.

What power does the Eaton E-Locker need?

Eaton says only 12 volt power is needed. Eaton says there are no air lines to leak and no cables to get hung up.

What gear ratio is this E-Locker for?

The gear ratio is 3.73 and up, which is the carrier ratio the unit is built for. Confirm the gear ratio of your axle before ordering.

Does a locker change how the vehicle steers?

Yes. A locked axle makes both wheels turn at the same speed, which can feel different in tight turns. Unlock the differential before tight low-speed maneuvering on pavement. Most drivers keep it open for daily driving and lock it only when traction is needed.

Should the gear oil be changed after installing a locker?

Check the gear oil level and condition after installation, and follow the axle service schedule. Use the lubricant type the axle requires. Inspect the vent and cover seal during each service.
