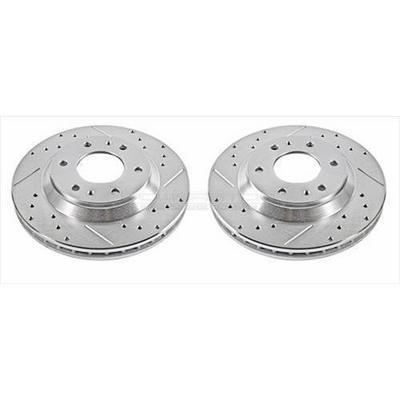

Power Stop Evolution Drilled and Slotted Brake Rotors – AR8649XPR

Power Stop

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Drilled and slotted vented front rotors, 6 lugs, 2 wheel set
  • Fits 2002-2005 Trailblazer, 2002-2004 Envoy, Rainier, Ascender and Bravada
  • Run-out 0.0032 in (0.08 mm) maximum
  • Power Stop part number PSTAR8649XPR

Description

Overview

The Power Stop Evolution AR8649XPR is a set of drilled and slotted front brake rotors for GM mid-size SUVs, including the 2002-2005 Chevrolet Trailblazer, 2002-2004 GMC Envoy, 2004-2005 Buick Rainier, 2004-2005 Isuzu Ascender and 2002-2004 Oldsmobile Bravada. The vented cast iron rotors have six lugs.

The drilled holes allow cooling and help keep brake temperatures down under heavy use, while the rounded slots wipe away gas and debris to keep a clear contact patch.

The rotors are machined and mill balanced, and the company guarantees fit for the vehicle.

The AR8649XPR covers five badge-engineered SUVs that share one front brake design, namely the Trailblazer, Envoy, Rainier, Ascender and Bravada. Power Stop gives these rotors a drilled and slotted face for owners who want more than a plain OE replacement, and the vented construction passes air through the disc. The vehicle list is year-specific, so check the model year before choosing the set, and note the rotors are a front-axle part. Power Stop also publishes a maximum run-out and DTV tolerance for this set, which are given in the specifications table. Owners of an Envoy or a Bravada should note those two models are listed through 2004 only, while the Trailblazer runs through 2005, as do the Rainier and Ascender.

Key features

  • Slotted and cross-drilled front rotors
  • Vented cast iron, 6 lugs
  • 2 wheel set, coated
  • Silver zinc dichromate plating
  • Rounded slots clear gas and debris
  • Maximum run-out 0.0032 in (0.08 mm)

Choosing a front rotor

Mid-size SUVs with six-lug front hubs often share brake hardware across several badges, so the rotor fit should be confirmed against the exact year and model. Vented construction places cooling fins between the two faces, which helps when the vehicle is used for towing or steep grades. Measure rotor thickness and runout before reuse, because a rotor that is thin or warped can cause pulsation even when the pads are new.

Rotor replacement is often paired with pads, hardware and sometimes brake fluid. Clean the hub face to remove rust and debris, and use fresh pad hardware. A rotor that is thin, grooved or heat-cracked should be replaced rather than resurfaced when it no longer meets its minimum thickness.

  • Confirm the model year before ordering
  • Clean the hub and remove any rust ridge
  • Replace pads and rotors together for even wear
  • Check the wheel bearing if pulsing persists after installation

Specifications

Brand Power Stop
Part number PSTAR8649XPR
Part type Evolution drilled and slotted brake rotors
Disc material Cast iron
Style Vented
Position Front
Number of lugs 6
Quantity 2 wheel set
Coating Coated
Maximum run-out 0.0032 in (0.08 mm)
Maximum DTV tolerance 0.0005 in (0.0125 mm)

Vehicle fitment

It fits the 2004-2005 Buick Rainier, 2002-2005 Chevrolet Trailblazer, 2002-2004 GMC Envoy, 2004-2005 Isuzu Ascender and 2002-2004 Oldsmobile Bravada.

The Envoy and Bravada fit through 2004 only, and Trailblazer EXT and later models are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.

What’s included

Two front rotors for the left and right wheels.

Fitment

VehicleYearsTrims
Buick Rainier2004–2005CXL
Chevrolet Trailblazer2002–2005LS, LT, LTZ, North Face
GMC Envoy2002–2004SLE, SLT
Isuzu Ascender2004–2005LS, Limited, S
Oldsmobile Bravada2002–2004Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which SUVs use the Power Stop AR8649XPR?

It fits the 2002-2005 Trailblazer, 2002-2004 Envoy, 2004-2005 Rainier, 2004-2005 Ascender and 2002-2004 Bravada as a front rotor set with six lugs.

Does the AR8649XPR fit a 2005 GMC Envoy?

No. The Envoy fits 2002-2004 only, so a 2005 model falls outside this fit and needs a rotor made for its own year. Confirm fit for your vehicle's year, model and trim before ordering.

How many lugs does the AR8649XPR have?

It has 6 lugs, in a vented cast iron front rotor design, sold as a 2 wheel set that covers the left and right sides.

What are the AR8649XPR run-out limits?

Power Stop gives a maximum rotor run-out of 0.0032 in (0.08 mm) and a maximum DTV tolerance of 0.0005 in (0.0125 mm) for this rotor set.

How do I know when front rotors need replacing?

Replace them when they fall below minimum thickness, when they show deep grooves or cracks, or when braking pulses through the pedal. Check runout with a dial indicator, and replace the pads at the same time so the new rotors bed in evenly.
