Overview

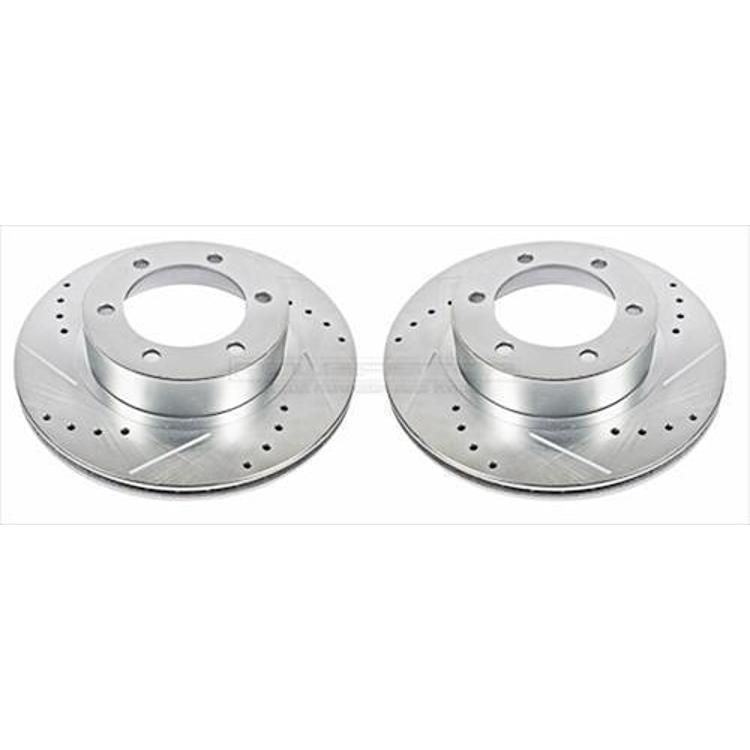

The Power Stop JBR794XPR is a front slotted and cross-drilled brake rotor for the 1996–2002 Toyota 4Runner and the 2004 Toyota Tacoma. It is part of the Evolution series and is a direct-fit rotor.
Holes drilled through the face give heat a way out, and the rounded slots clear water, gas and dust from the pad contact area. Power Stop machines the rotor with its Tru-Cast technology and mill balances it, then plates the drilled and slotted rotors in silver zinc to help them resist rust.
Run out is the side-to-side wobble of the rotor face as it spins, and DTV is disc thickness variation. Power Stop gives run out as within 0.0015 and the DTV tolerance as within 0.005. Direct fit means the rotor replaces the factory rotor without any modification.
A cross-drilled rotor has holes through the friction surface, and a slotted rotor has grooves cut across it. Putting both on the JBR794XPR gives heat and debris two routes away from the pad, and Power Stop adds that the combination looks good behind custom or factory wheels.
Key features
- Cross-drilled holes said to keep the rotor up to 180°F cooler
- Rounded slots that keep the pad contact patch clear of water, gas and dust
- Beveled and precision-drilled holes that help control temperature under extreme braking
- Tru-Cast machining with run out within 0.0015 and DTV tolerance within 0.005
- All Evolution rotors are mill balanced
- G3000 grade cast
- Silver zinc plating to shield against rust in normal use
- Reduces fade and finishes the look behind factory or custom wheels
How drilled and slotted rotors work
Drilled and slotted rotors manage heat and debris in different ways. Holes let hot gas escape from the friction face, and grooves wipe water, dust and gas from the pad contact area. Keeping that contact patch clear helps the pad bite consistently, especially after rain or on steep grades.
Pads tend to wear faster on this style of rotor than on a plain face, so plan pad changes on a regular schedule. Choose pads matched to a drilled and slotted design. Bedding in new pads and rotors gradually lets an even transfer layer form, which keeps braking smooth.
- Replace both rotors on an axle together
- Inspect hole and slot edges for cracks
- Watch for uneven pad wear as a sign of warping
Specifications
| Brand | Power Stop |
|---|---|
| Part number | JBR794XPR |
| UPC | 792088560599 |
| Product type | Brake rotor, front |
| Rotor design | Slotted and cross drilled |
| Casting grade | G3000 |
| Coating | Coated (silver zinc plated) |
| Location | Front |
| Fit type | Direct fit |
Vehicle fitment
It fits 1996–2002 Toyota 4Runner models and the 2004 Toyota Tacoma in the front position. Tacoma years other than 2004 and the 2003 4Runner are not covered, so match your year before buying.
Tacoma years other than 2004 and the 2003 4Runner are not part of this rotor’s list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replace the rotors on both sides of the front axle together and pair them with fresh pads, then bed the pads in as the pad maker directs so the slotted surface wears evenly.
