Overview

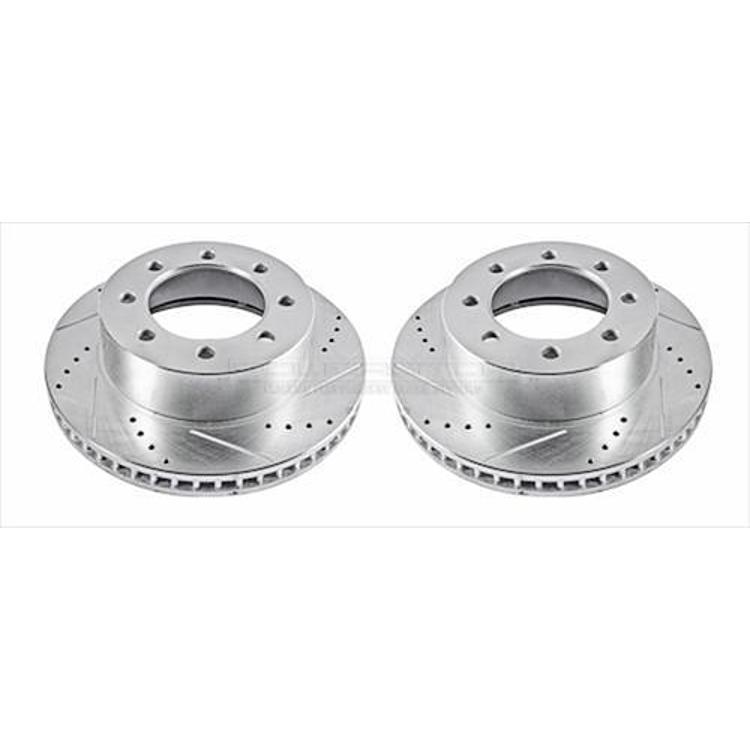

The Power Stop AR8771XPR is a front slotted and cross-drilled brake rotor for the 2003–2008 Dodge Ram 2500 and Ram 3500. The coated finish is meant to resist rust during normal operation, and the slots keep the pad contact patch clear.
The AR8771XPR is a front rotor with a slotted and cross-drilled face for the 2003–2008 Dodge Ram 2500 and Ram 3500. It replaces a plain disc on these trucks.
Cross-drilled holes give heat and gas somewhere to go, and slots wipe the pad surface as the rotor turns. The two features are often combined on rotors meant for harder-than-usual braking.
Key features
- Slotted and cross-drilled front rotor
- Direct fit for the listed vehicles
- G3000 grade cast
- Slots keep a clear contact patch between pad and rotor
- Rotor run-out within 0.0015 and DTV tolerance within 0.005
- Coated rotor
- Rounded slots that sweep water, gas and dust from the pad contact patch
- Silver zinc plated to shield against rust during normal operation
- Cross-drilled holes that Power Stop says keep rotors up to 180°F cooler
Cross-drilled rotors on heavy trucks
Heavy trucks carry more weight and often tow, so brake heat builds faster than on lighter vehicles. Cross-drilled holes and slots help move heat and debris away from the friction surface, which makes the rotor more useful when loads are high.
Choose the rotor for how the truck is used. Work trucks with frequent towing benefit from a disc that handles repeated heavy stops, while a daily-driven truck may run well with a pad suited to normal use. Match pads to the rotor face rather than assuming any pad will do.
Heavy-duty rotors take a lot of load at the hub, so check the mounting face and wheel studs before fitting. Inspect for cracks around the drilled holes and for a hot-spot pattern on the face after hard use. Replace the rotor when grooves are deep or the surface is uneven.
- Inspect the hub and wheel studs
- Look for cracks around the holes
- Match pads to the rotor face
- Replace worn rotors in axle pairs
Specifications
| Brand | Power Stop |
|---|---|
| Part number | AR8771XPR |
| UPC | 79208891705 |
| Product type | Slotted and cross-drilled disc brake rotor |
| Position | Front |
| Fit type | Direct fit |
| Coating | Rotors coated |
| Casting | G3000 grade cast |
| Plating | Silver zinc |
| Machining | Tru-Cast precision machined |
| Rotor run-out | Within 0.0015 |
| DTV tolerance | Within 0.005 |
| Balance | Mill balanced |
Vehicle fitment
It fits the following vehicles and trims: 2003–2008 Dodge Ram 2500 (Laramie, Power Wagon, SLT, ST, SXT, Sport, TRX4); 2003–2008 Dodge Ram 3500 (Laramie, SLT, ST, SXT, Sport, TRX4).
Rotor diameter, thickness, bolt pattern and weight should be measured against the old rotor before fitting.
Fit is for 2003–2008 Ram 2500 and Ram 3500 models only. Make sure your truck’s year, model and trim are included before ordering.
Installation notes
Keep brake fluid and grease off the rotor surface during installation.
What’s included
The AR8771XPR is a Power Stop brake rotor on its own.
Not included: No brake pads or caliper hardware are listed with the rotor, so they would come separately.
