Overview

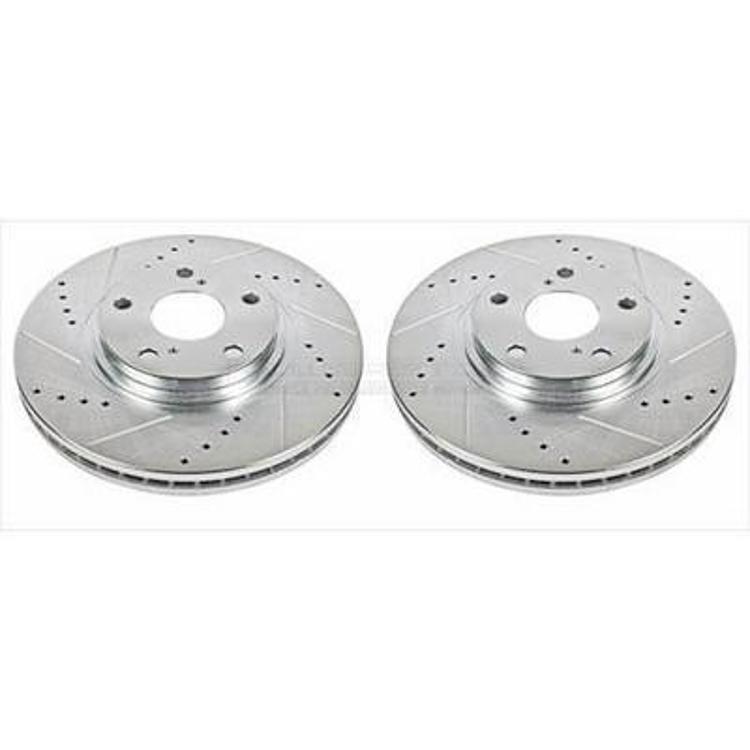

The Power Stop JBR737XPR is a front slotted and cross-drilled brake rotor for the 2001–2007 Toyota Highlander and the 1999–2003 Lexus RX300. The JBR737XPR is made for the front axle, uses cross-drilled holes together with slots, and arrives coated.
Drilled, slotted and zinc plated, this rotor is aimed at drivers who want better heat control and pad contact, with a direct-fit design made for the listed vehicles.
Power Stop’s description of the JBR737XPR stresses two jobs for the surface: drilled holes help carry heat away, and slots keep gas, water and dust from building up between pad and rotor.
The drilled and slotted design is aimed at street and day track use, combining cooling from drilled holes with slots that sweep away gas and dust.
Key features
- Rounded slots clear water, gas and dust
- Cross-drilled holes for cooling
- Silver zinc plating resists rust
- G3000 grade casting
- Tru-Cast precision machining
- Beveled, precision-drilled holes
- Reduces brake fade
- Evolution rotor, mill balanced
- Run out within 0.0015, DTV tolerance within 0.005
- Direct-fit design
Front rotor fitting tips
Front rotors work with the hub, bearings and caliper as one assembly, so a rotor that wobbles can point to a worn hub or a loose bearing. Clean the hub face and remove any rust before mounting, since a dirty mating surface causes runout even when the rotor is new.
Drilled and slotted rotors suit drivers who brake hard or tow, but the cross-drilled holes need occasional checks for cracks. Pair the rotor with pads suited to your driving style, and bed the pads in with moderate stops after installation. Replace rotors showing heavy grooves, heat spots or a thickness below the minimum stamped on them.
- Clean the hub face before mounting
- Check bearings and caliper hardware for play
- Bed pads in after the first brake job
Specifications
| Brand | Power Stop |
|---|---|
| Part number | JBR737XPR |
| UPC | 792088560162 |
| Type | Slotted and cross drilled |
| Position | Front |
| Coating | Coated |
| Finish | Silver zinc plated |
| Material | G3000 grade casting |
| Machining | Tru-Cast precision machined, mill balanced |
| Tolerances | Run out within 0.0015; DTV within 0.005 |
| Drill holes | Beveled and precision drilled |
| Slots | Rounded slots sweep water, gas and dust |
| Cooling | The drilled holes are designed to keep the rotor up to 180°F cooler. |
| Line | Evolution |
| Fit | Direct fit |
Vehicle fitment
The JBR737XPR fits the 1999–2003 Lexus RX300 (Base) and the 2001–2007 Toyota Highlander (Base, Limited, Sport). It does not cover Highlanders after 2007 and is a front rotor only. Confirm your vehicle’s year, model and trim before ordering.
The JBR737XPR does not cover Highlanders after 2007, and it is a front rotor only. The Highlander entries name the Base, Limited and Sport trims, while the RX300 entry names the Base trim. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Fit the JBR737XPR to the front brakes, check that the hub and caliper hardware are in good condition, and bed in the pads after installation.
