Overview

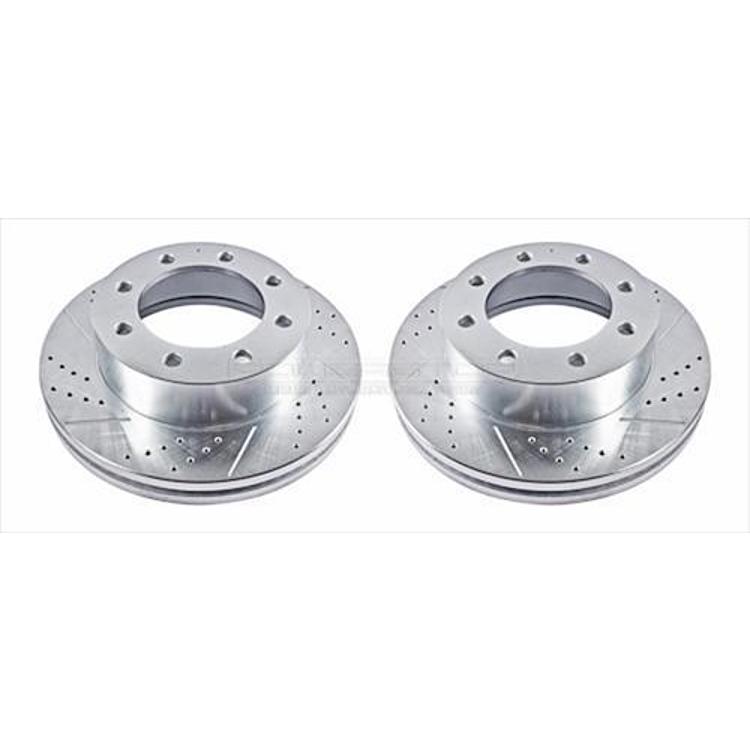

The Power Stop AR85107XPR is a slotted and cross-drilled brake rotor for the Ford F-250 Super Duty (2005–2012) and F-350 Super Duty (2005–2008 and 2012).
Slotted for pad degassing and cross-drilled for cooling, the Evolution rotor is built for owners who want both features on one disc. Power Stop claims cross-drilled holes keep the rotor up to 180°F cooler.
Key features
- Power Stop credits the cross-drilled holes with rotor temperatures up to 180°F lower
- Slots keep a clear contact patch between the pad and the rotor
- Tru-Cast technology with precision machining
- Runout specification of 0.0015 and DTV specification of 0.005
- Balanced by milling, as with all Evolution rotors
- Zinc plated finish in silver for corrosion resistance
- G3000 grade casting
- Aimed at reducing fade
- Visual upgrade behind factory or aftermarket wheels
Front brakes on heavy trucks
Front brakes on heavy Super Duty trucks handle much of the stopping load, especially when the truck is loaded or pulling a trailer. Rotors are exposed to high temperatures, so they need regular inspection for heat checks, glazing and thickness loss. Ask a qualified technician to measure runout and thickness if you notice pulsing through the steering wheel.
Check the front wheel bearings, ball joints and caliper slide pins at the same time as the rotors, because play or drag in these parts can cause uneven rotor wear. Bed in new front pads with moderate stops before heavy loads. Keep the hub and rotor mating surfaces clean, and torque the wheel fasteners to specification after the first drive. Good maintenance of these parts extends the service life of the rotors and pads.
Specifications
| Brand | Power Stop |
|---|---|
| Part number | AR85107XPR |
| UPC | 792088552471 |
| Product line | Power Stop Evolution |
| Position | Front |
| Rotor type | Slotted and cross drilled |
| Material | G3000 grade cast |
| Finish | Silver zinc plated |
| Runout | Within 0.0015 |
| DTV tolerance | Within 0.005 |
| Balance | Mill balanced |
| Coating | Coated |
| Cooling holes | Beveled, precision-drilled cross holes; Power Stop says they keep rotors up to 180°F cooler |
| Slots | Rounded slots that sweep a clear contact patch between pad and rotor |
| Manufacturing | Tru-Cast technology, precision machined |
| Fade | The rotor is designed to help reduce fade. |
| Appearance | The rotor is styled to look right behind custom or factory wheels. |
| Plating note | All drilled and slotted rotors except hub and rotor assemblies are silver zinc plated |
| Fit | Direct fit |
Vehicle fitment
It fits the front axle of the 2005–2012 Ford F-250 Super Duty, including Cabela’s, FX4, King Ranch, Lariat, XL and XLT, and the 2005–2008 and 2012 Ford F-350 Super Duty, including FX4, King Ranch, Lariat, XL and XLT.
Listed vehicles:
- 2005–2012 Ford F-250 Super Duty (Cabela’s, FX4, King Ranch, Lariat, XL, XLT)
- 2005–2008, 2012 Ford F-350 Super Duty (FX4, King Ranch, Lariat, XL, XLT)
F-350 Super Duty years from 2009 to 2011 are not shown for this part number, and F-150 pickups are not included. Confirm your vehicle’s year, model and trim before ordering.
