Overview

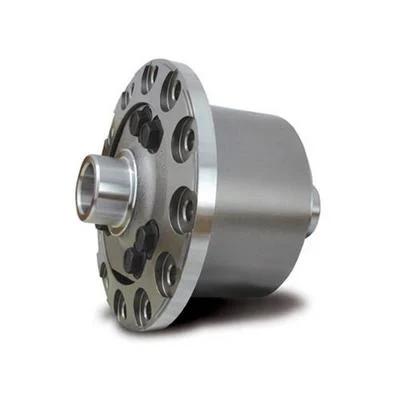

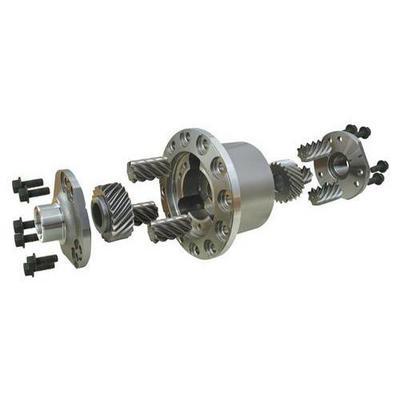

The Eaton Detroit TrueTrac, part EAT913A591, is a front limited slip differential for Dana 44 axles with 30 splines. It is an all gear driven, clutchless design that moves power from a slipping wheel to the wheel with grip. It has no clutches to wear out, so it is built for long service as a limited slip.
Key features
- All gear driven, clutchless limited slip design
- Automatic transfer of power from the slipping wheel to the wheel with traction
- No clutches to wear out.
- Front axle location with Dana 44 axle type and 30 splines
Before you buy
A limited slip differential changes how the axle shares torque. When one front tire loses grip, an open differential sends power to the spinning wheel and the vehicle stalls in place. A limited slip restricts that wheel spin so torque reaches the tire that still has traction, which helps on loose dirt, mud, snow and climbs where one wheel lifts. Gear driven designs of this type do the job without the friction clutch packs found in many older units, so there are no clutch discs to adjust or replace.
Choosing a front differential is about matching the axle, not just the ring gear. Check the axle housing, spline count and carrier style before buying, and confirm the gear ratio matches the ring and pinion already in the vehicle. Front axles also see steering angle, so a limited slip changes how the truck handles tight turns on pavement. Many owners replace the pinion seal and carrier bearings at the same time, since the axle is already open for the install.
- Measure the axle housing and spline count before ordering
- Confirm the ring and pinion are a matched set
- Replace the pinion seal during installation
- Inspect carrier bearings for play before reassembly
- Use a gear oil grade suited to limited slip use
Specifications
| Brand | Eaton |
|---|---|
| Part number | EAT913A591 |
| Differential type | Limited slip assembly |
| Axle type | Dana 44 |
| Axle spline | 30 splines |
| Axle location | Front |
| Gear ratio | 3.73 Down |
| Design | Clutchless, all gear driven |
Vehicle fitment
Fitment is by axle type: a front Dana 44 with 30 splines. No vehicle year, make, model or trim is named, so this assembly is not tied to a specific vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installing a limited slip assembly means setting gear mesh and bearing preload, so a qualified differential shop should do the work. Confirm the 3.73 ratio matches your existing gears first.
What’s included
The package is the differential assembly only.
Not included: Ring and pinion gears, carrier bearings and installation hardware are not covered by this item. Check the package contents against your installation before starting.
