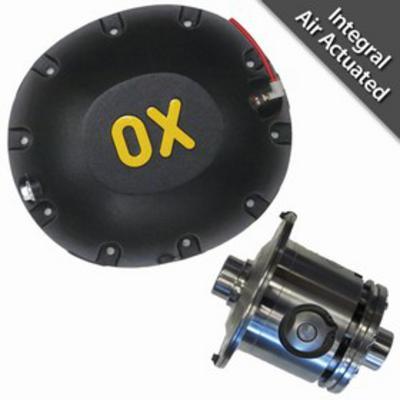

Ox Locker Chrysler 8.25 Inch 27 Spline Air Selectable Locker – C825-273-27-AIR

Ox Locker

Shop Ox Locker Differentials on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Air selectable locker for a Chrysler 8.25-inch rear axle with 27 splines (part number OXLC825-273-27-AIR)
  • Open mode for street driving and full spool mode for maximum traction
  • Forged cover with an integral air cylinder
  • Requires an external air source, not included

Description

Overview

Part OXLC825-273-27-AIR is a rear locking differential for a Chrysler 8.25-inch axle with 27 splines. It runs in two modes: open for smooth street driving and full spool for maximum available traction.

The unit goes from open to locked with the flick of a switch. It includes a forged differential cover with an integral air cylinder, which Ox Locker says makes operation smooth and reliable and keeps it serviceable. All components are fully machined in the U.S.A. The locker requires an external air source, which is not included.

Key features

  • Open mode for smooth street driving
  • Full spool mode for maximum available traction
  • Flick-switch change between open and locked
  • Forged differential cover with an integral air cylinder
  • All components fully machined in the U.S.A.

Air system and daily use

An air-actuated locker depends on a steady, dry air supply, so the air system is as important as the differential itself. Plan the routing of air lines away from hot exhaust parts and moving suspension links, and secure them with clips so they cannot chafe. Fittings should be checked for leaks with a soapy solution after installation, since a small leak can make the locker slow to engage or release.

Moisture is the most common complaint with air lockers. A filter or a drain at the low point of the tank helps keep water out of the valve, and periodic draining keeps the system working as intended. Inspect the cover seal and the air cylinder during routine axle service, and check the solenoid wiring for corrosion. Locker engagement is easier to judge on a flat, low-speed surface before using it in rough terrain.

Specifications

Brand Ox Locker
Part number OXLC825-273-27-AIR
Popular axle manufacturer Chrysler
Axle location Rear
Axle type Chrysler 8.25 inch
Axle spline 27 splines
Differential type Selectable locker, air actuated
Air supply External air source, not included

Vehicle fitment

It is built for a rear Chrysler 8.25-inch axle with 27 splines, so match the axle size and spline count before ordering.

Match the axle type to the Chrysler 8.25 inch and the spline count to 27 splines. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Operating the locker requires an external air source, which is not included, so the air system needs to be supplied separately before installation.

What’s included

The locker and forged cover are included. An external air source is not included.

Questions & Answers

Does the Ox Locker OXLC825-273-27-AIR include an air source?

No. The locker needs an external air source to operate, and that air source is not included, so plan to supply the air system separately before installing.

Will this locker fit a Chrysler 8.25 rear axle?

It is built for a rear Chrysler 8.25-inch axle with 27 splines. Confirm the axle size and spline count before ordering, and confirm your vehicle's year, model and trim.

Can this locker be used for everyday street driving?

Yes. The open mode suits smooth street driving, and the full spool mode provides maximum available traction when it is needed off road.

How often should an air locker be inspected?

Check the air lines, fittings and the cover seal during routine axle service, and look for leaks each time the locker is cycled. Draining moisture from the air supply regularly also helps keep the valve working.
