Overview

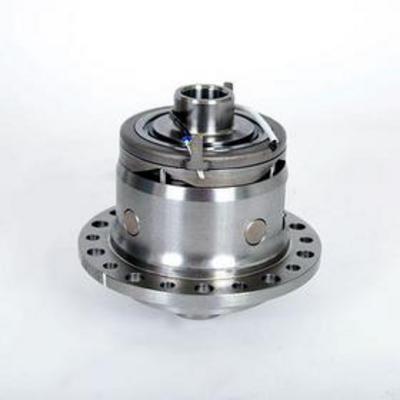

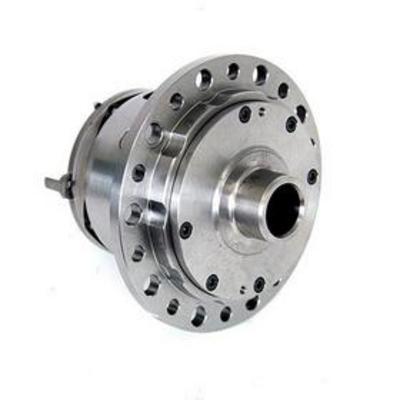

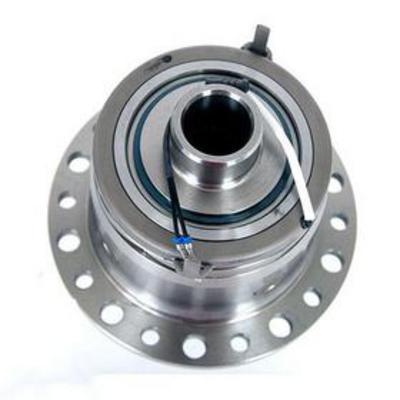

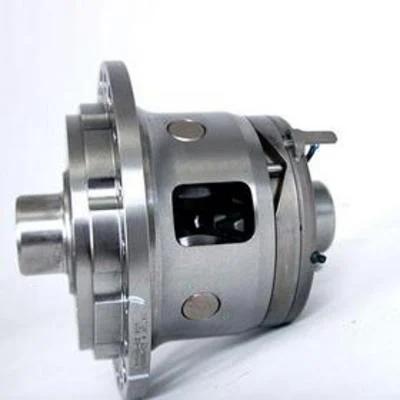

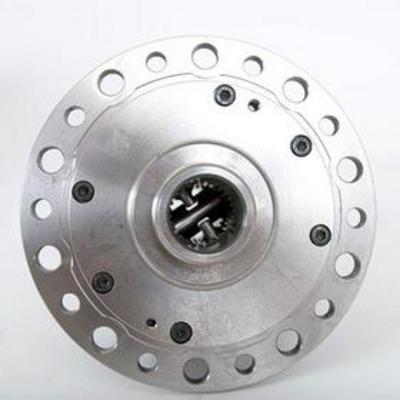

The Eaton ELocker4, part 19969-010, is an electronic selectable differential for Dana 44 axles with 30 splines. It is built for drivers who need traction on demand, and it can be used at the front or rear axle location. Eaton describes its four pinion gear design as adding strength for more extreme vehicles.
Key features
- Electronic selectable locker that goes from open to 100-percent locked and back
- Four pinion gear design adds strength.
- Engagement time of .14 seconds.
- 30 spline axle application
Wiring and switch basics
An electronic selectable locker depends on a power feed, a switch and a clean wiring route. Because the locker responds to a signal rather than a manual lever, the wiring should be routed away from heat, moving suspension and water. A qualified installer can check the circuit and fuse before the first drive.
Using a selectable locker well means understanding when to engage it. Locking both wheels helps on loose ground and steep climbs, but it can cause binding on pavement and in tight turns. Many owners disengage the locker once traction returns, and they keep tire sizes matched on each side so both wheels turn at similar speeds.
- Route the harness away from exhaust and moving parts
- Check the switch and indicator before the first drive
- Disengage on pavement to avoid binding in turns
Specifications
| Brand | Eaton |
|---|---|
| Part number | EAT19969-010 |
| Differential type | Selectable locker, electronic |
| Axle type | Dana 44 |
| Axle spline | 30 splines |
| Axle location | Front or rear |
| Gear ratio | 3.92 and up |
| Pinion design | 4 pinion gears |
Vehicle fitment
Fitment is by axle type: Dana 44 with 30 splines. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The ELocker4 needs electrical wiring to its switch, so a qualified installer should confirm the wiring before use. Gear set setup should also be done by a professional.
What’s included
Only the ELocker4 differential is described.
Not included: Ring and pinion gears, the switch and the wiring harness are not part of this unit. Compare the box contents with your installation plan before you start.
