ARB Land Rover Banjo P38A Air Locking Differential – RD138

ARB 4x4 Accessories

Shop ARB 4X4 Accessories Differentials on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • ARB Air Locker for a Land Rover Banjo P38A rear axle with 24 splines (part number RD138)
  • Pneumatic selectable locking differential
  • Requires an ARB onboard air compressor, not included
  • Universal fit listed by the manufacturer

Description

Overview

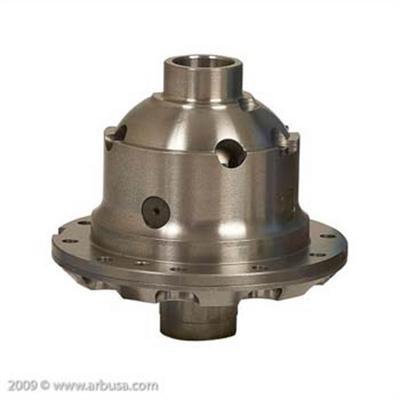

The ARB Land Rover Banjo P38A Air Locking Differential, part number RD138, is a pneumatic selectable locker for the rear of a Land Rover Banjo axle with 24 splines. Confirm the axle and vehicle before ordering.

The air lock turns the rear differential into a full spool, supplying 100 percent power to both wheels when engaged. Disengaged, the differential operates as a conventional open differential for normal driving. The locker is built to keep the vehicle moving through difficult terrain. An ARB onboard air compressor is required to activate the Air Locker and is not included.

Key features

  • Pneumatic selectable locking differential for the rear axle
  • Full spool operation when the air lock is engaged
  • Open differential behavior when released
  • 24 spline Land Rover Banjo axle

Driving with an air locker

A selectable locker is most useful when one wheel loses grip, such as on a rock ledge, loose climb or off-camber track. Engaging the lock sends drive to both wheels, which helps the vehicle keep moving when one side has little traction. Because the locker is only needed on demand, it can stay disengaged on pavement and during everyday driving.

Lockers change how the axle turns. With the lock engaged, the wheels on one axle turn at the same speed, so tight turns on dry pavement can feel stiff or hop. Disengage the lock before turning on hard surfaces and re-engage it only when the trail calls for it.

  • Engage only when traction is needed
  • Disengage before turning on pavement
  • Check the air lines after water crossings

Specifications

Brand ARB 4×4 Accessories
Part number ARBRD138
Axle location Rear
Axle type Land Rover Banjo P38A
Axle spline 24 splines
Differential type Selectable locker
Air supply ARB onboard air compressor, not included

Vehicle fitment

It is a universal-fit locker for a rear Land Rover Banjo axle with 24 splines. Confirm the axle and your vehicle’s year, model and trim before ordering.

Match the rear position and the 24 spline count to your axle. Check the year, model and trim against your vehicle before buying.

Installation notes

The locker needs an ARB onboard air compressor to activate it. Plan the compressor and activation switch before installing the locker.

What’s included

Only the RD138 locker is listed; the air compressor is not included.

Questions & Answers

Will the ARB RD138 fit a Land Rover P38A?

It is a universal-fit locker for a rear Land Rover Banjo axle with 24 splines, and it is built for the P38A axle. Confirm the axle and vehicle before ordering.

Does this locker need an air compressor?

Yes. An ARB onboard air compressor is required to activate the Air Locker. The compressor is not included with the locker.

What does the locker do when it is engaged?

It turns the rear differential into a full spool, which supplies 100 percent power to both wheels. When released, the differential works as a conventional open differential.

How should an air locker be maintained?

Inspect the air lines and fittings for leaks, and keep the compressor intake clear of mud and debris. Test engagement on level ground periodically, and look for signs of air loss after deep water crossings or long trail runs.

Do air lockers need gear oil changes more often?

Gear oil service follows the axle's normal schedule. After heavy use or water crossings, check the oil for water or metal particles, since a locked axle puts more load on the gears.
