Overview

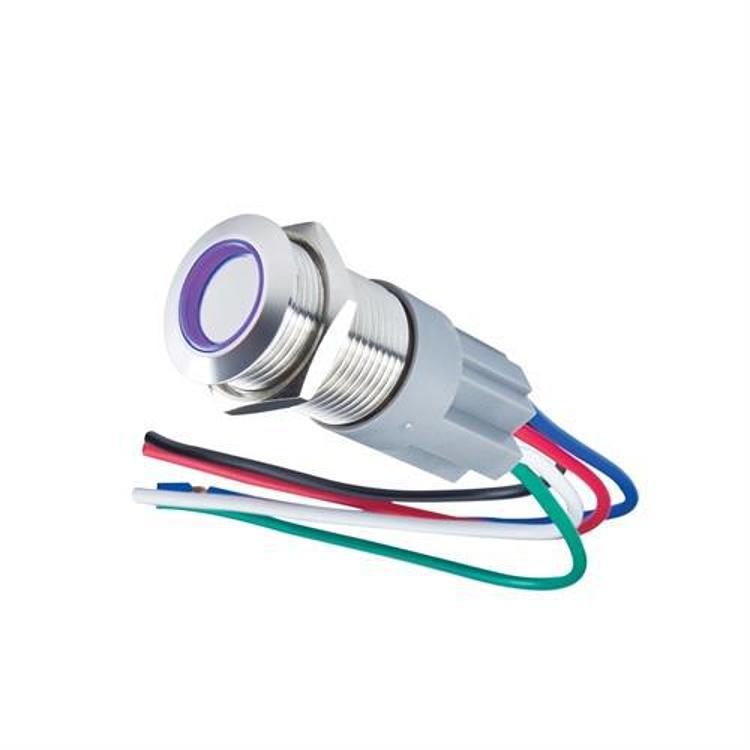

The Oracle Lighting 2012-007 is a pre-wired on/off flush mount LED switch with UV/purple illumination, designed for a 16MM mounting hole. Its power ring glows when the switch is activated, and the switch mounts flush to the panel.
The housing is heavy-duty brass with a durable nickel plate finish, and the metal body gives a definite click when engaged. The switch is 12-volt and fits universal applications; it is not waterproof.
Key features
- Pre-wired terminal for simpler installation
- Glowing power ring when activated
- Mounts flush in a 16MM hole
- Heavy-duty brass assembly with nickel plate finish
- Metal housing with a definite click when engaged; CE compliant
Flush switch panel preparation
Flush-mount switches depend on a clean, correctly sized hole. Cut the opening to match the switch’s mounting size before fitting the body, and deburr the edges so the switch seats flat against the panel. A snug fit keeps the switch from rattling, which matters when the panel carries vibration on rough roads.
Pre-wired switches simplify the connection work, but the wire routing still needs planning. Run the leads away from moving parts, add a fuse close to the power source, and secure the connection so the terminal cannot pull loose. Labeling the leads at the panel makes future troubleshooting easier. Confirm the switch works before the panel is put back into place.
- Mark the mounting hole position before cutting
- Keep wires clear of moving parts
- Fuse the feed near the power source
Specifications
| Brand | Oracle Lighting |
|---|---|
| Model number | 2012-007 |
| Part number | Not listed |
| UPC | 201200720143 |
| Voltage | 12-volts |
| Illumination color | UV/Purple |
| Switch type | Push button, on/off flush mount |
| Mounting hole | 16MM |
| Assembly | Heavy-duty brass with durable nickel plate finish |
| Certification | CE compliant |
| Waterproof | Not waterproof |
Vehicle fitment
The switch is a universal fit, so it is not tied to a vehicle year or model. Mounting depends on a 16MM hole in the panel rather than on the vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The switch needs a 16MM mounting hole, and its pre-wired terminal should be connected to a fused 12-volt circuit. Plan the wire run before mounting the switch.
What’s included
The package includes the pre-wired switch with its illuminated power ring.
Not included: Plan the wiring beyond the pre-wired terminal and the panel before installing the switch.
