Omix-ADA Wheel Cylinder – 16723.18

Omix-Ada

$27.99Usually ships within 2 to 3 days
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 2:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear left wheel cylinder for 9 inch brakes, Omix-ADA part OAI16723.18
  • Model 35 rear axle application
  • Fits 1993–1998 Cherokee (XJ), 1993–1994 Grand Cherokee (ZJ) and 1997–1998, 2001 Wrangler (TJ)

Description

Overview

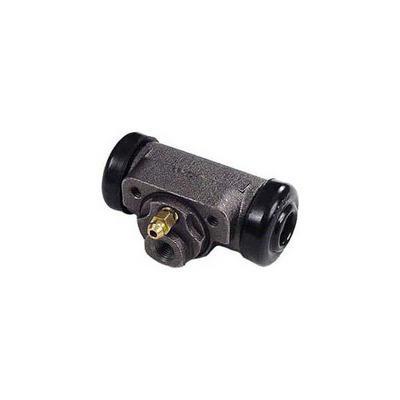

The Omix-ADA OAI16723.18 is a rear left wheel cylinder for 9 inch brakes on a Model 35 rear axle. It fits the 1993–1998 Jeep Cherokee (XJ), 1993–1994 Jeep Grand Cherokee (ZJ) and 1997–1998 and 2001 Jeep Wrangler (TJ).

A wheel cylinder pushes the brake shoes outward as brake fluid pressure rises. Omix-ADA builds this cylinder as a direct replacement to original Jeep specifications, with the rear left position marked.

Key features

  • Rear left position
  • Fits 9 inch brake assemblies
  • Model 35 rear axle application
  • Direct fit replacement, part number OAI16723.18

Rear wheel cylinder service

A rear wheel cylinder pushes both shoes outward when the pedal is pressed, so its piston and seals must move evenly. Leaks at the boot or bore allow fluid to reach the linings, which reduces grip and can ruin the shoes. Fluid on the drum is a sign that the cylinder, the shoes or both need attention.

When replacing the cylinder, remove the drum and inspect the shoes, springs and adjuster. Clean the backing plate and check the brake line fitting for damage. Bleed the system at the wheel after installation, and test the brakes at low speed before driving normally, because a poorly bled system can feel spongy.

  • Check the drum for fluid or dust
  • Inspect the boot and bore for leaks
  • Bleed until the fluid runs clear of air

Specifications

Brand Omix-ADA
Part number OAI16723.18
Type Wheel cylinder
Position Rear left
Brake size 9 inch
Rear axle Model 35
Fitment type Direct fit

Vehicle fitment

It fits the 1993–1998 Jeep Cherokee (XJ) in Base, Classic, Country, Limited, SE and Sport trims, the 1993–1994 Jeep Grand Cherokee (ZJ) in Base, Laredo, Limited and SE trims, and the 1997–1998 and 2001 Jeep Wrangler (TJ) in SE, Sahara and Sport trims.

Confirm your vehicle’s year, model and trim before ordering. Check that the rear axle is a Model 35 with 9 inch brakes.

Installation notes

Wheel cylinders are part of the hydraulic brake circuit, so the system must be bled after the cylinder is replaced. Check the shoes for brake fluid contamination before reassembly, and confirm the rear axle is a Model 35 with 9 inch brakes before fitting.

What’s included

The rear left wheel cylinder is the item described.

Not included: Check the brake shoes, hold-down hardware, brake fluid and bleeding tools against your job before starting.

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1993–1998Base, Classic, Country, Limited, SE, Sport
Jeep Grand Cherokee (ZJ)1993–1994Base, Laredo, Limited, SE
Jeep Wrangler (TJ)1997–1998, 2001SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does this wheel cylinder fit a Jeep Cherokee XJ?

Yes, for 1993–1998 Jeep Cherokee (XJ) models with the Base, Classic, Country, Limited, SE or Sport trims. Confirm that the rear axle is a Model 35 with 9 inch brakes, since those details matter for a rear wheel cylinder.

Which side is this wheel cylinder for?

It is for the rear left position, as marked on the part. Check the side on your vehicle before installation, and confirm the cylinder matches the old one in size and port location before fitting.

What brake and axle does it need?

The cylinder is for 9 inch brakes and a Model 35 rear axle. The part number is OAI16723.18. Compare the bore size and hardware with the old cylinder before fitting.

Should the brake shoes be replaced when a wheel cylinder is changed?

Not always. Inspect the linings for fluid soak, glazing and uneven wear. Shoes that have been contaminated by leaking fluid usually need replacing, while clean shoes with even wear can be reused after the drum is cleaned.
