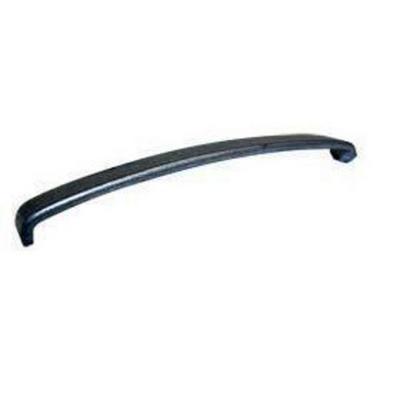

Crown Automotive Brake Caliper Support Spring – J3223413

Crown Automotive

$17.06In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 8:00 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Brake caliper support spring for a 6 bolt caliper plate
  • Two required per caliper
  • Position given as Front
  • Fits 1977–1978 Jeep CJ5 and CJ7

Description

Overview

The Crown Automotive J3223413 is a brake caliper support spring for the front of the 1977–1978 Jeep CJ5 and CJ7. It is made for a 6 bolt caliper plate, and two springs are needed per caliper.

Key features

  • Designed for a 6 bolt caliper plate
  • Two required per caliper
  • Position given as Front
  • Fits CJ5 and CJ7 with Base, Golden Eagle and Renegade trims

Spring wear and replacement

A caliper support spring keeps the caliper positioned against the caliper plate so it does not rattle or shift. Over time the spring can lose tension, corrode or fatigue, which often shows up as noise over bumps or pads that wear unevenly. Inspect it each time the pads are changed, along with the slides and pins.

Because two springs are used per caliper, replace them in pairs and keep the left and right sets separate while you work. Clean the caliper plate and seating faces before fitting new springs. Older vintage Jeep brake parts can be brittle, so handle the springs carefully and avoid bending them out of shape.

  • Check for rust and loss of tension
  • Replace springs in matched pairs
  • Clean the plate before fitting

Specifications

Brand Crown Automotive
Part number J3223413
Position Front
Caliper plate 6 bolt
Quantity per caliper 2

Vehicle fitment

The manufacturer fitment list covers the 1977–1978 Jeep CJ5 (Base, Golden Eagle, Renegade) and the 1977–1978 Jeep CJ7 (Base, Golden Eagle, Renegade).

Other CJ years, the CJ3 and Wrangler models are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Two springs are needed per caliper, so count the pieces for each caliper before installing.

What’s included

Check your existing parts for the caliper plate and brake hardware before ordering.

Fitment

VehicleYearsTrims
Jeep CJ51977–1978Base, Golden Eagle, Renegade
Jeep CJ71977–1978Base, Golden Eagle, Renegade

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How many springs go on each caliper?

Two per caliper. The spring is made for a 6 bolt caliper plate, so confirm your plate has six bolts before installing.

Does this spring fit a 1979 Jeep CJ7?

No. It fits the 1977–1978 Jeep CJ7 only, so a 1979 model is not covered. Confirm your vehicle's year, model and trim before ordering.

Is the caliper plate included with the spring?

Check whether you already have a caliper plate and other brake hardware before ordering. Confirm the spring suits your 6 bolt plate before buying.

How do I know when a caliper support spring is worn?

Look for rust, cracks, a flattened or weakened shape, or clunking when the brakes are applied. Uneven pad wear on one caliper can also point to spring trouble. Replace the springs in pairs when they show any of these signs.
