Overview

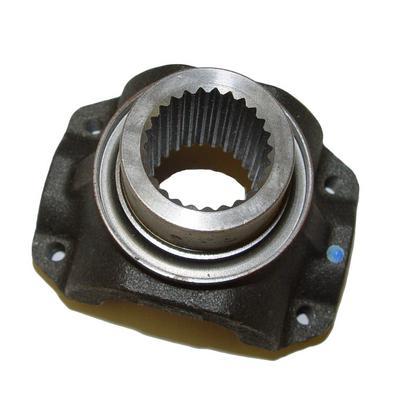

The Omix-Ada OAI16580.03 is a strap and bolt style Dana 30 front yoke for the front driveshaft at the transfer case, supplied as yoke only.
It fits the 2001 Jeep Cherokee (XJ), 1972–1983 CJ5, 1972–1975 CJ6, 1976–1986 CJ7 and 1981–1985 Scrambler. Those years span several generations, so confirm the year and model before ordering.
Key features
- Strap and bolt style yoke
- Supplied as yoke only
- Dana 30 Standard axle type
- Positioned at the front driveshaft at the transfer case
Driveshaft and yoke alignment
The front yoke joins the driveshaft to the transfer case, so its condition affects vibration and how the joint moves through its angle. When the yoke is replaced, inspect the matching universal joint, the driveshaft flange and the seal surface. Play at any of these points can transfer wear to the new part.
Clean the splines and bearing bores before installation, and confirm the yoke sits square on the output shaft. Driveshaft balance is sensitive to position, so mark the orientation of the driveshaft before removal if possible. After installation, check for vibration at speed and inspect the strap and bolt hardware for looseness after a few drives.
- Check the universal joint for play
- Mark driveshaft orientation before removal
- Recheck strap bolts after a few drives
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | OAI16580.03 |
| Axle type | Dana 30 Standard |
| Position | Front driveshaft at transfer case |
| Axle location | Front |
| Style | Strap and bolt |
| Supplied as | Yoke only |
Vehicle fitment
It fits 2001 Jeep Cherokee (XJ) Classic, Limited, SE and Sport; 1972–1983 Jeep CJ5 Base, Golden Eagle, Laredo, Limited and Renegade; 1972–1975 Jeep CJ6 Base; 1976–1986 Jeep CJ7 Base, Golden Eagle, Golden Hawk, Laredo, Limited and Renegade; and 1981–1985 Jeep Scrambler Base, Laredo, Renegade, SL and SR.
Other years and models, including the Wrangler and Grand Cherokee, are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the yoke connects the driveshaft to the transfer case, inspect the driveshaft and seal surfaces for wear when replacing it. Support the vehicle securely before working underneath.
What’s included
The item is the yoke only.
Not included: the driveshaft and any other hardware.
