Overview

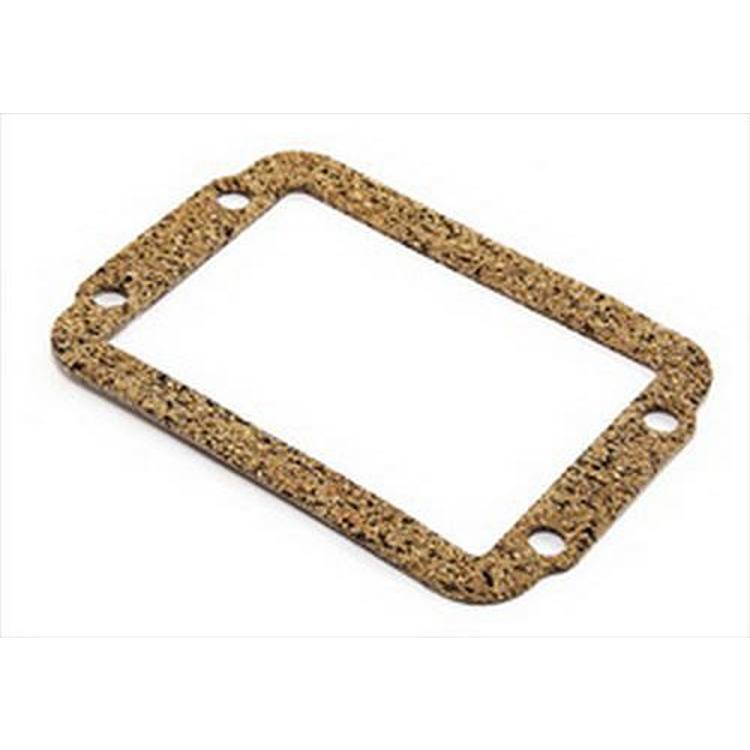

The Omix-ADA 16527.19 is a gasket for the cover of the vacuum disconnect on a front Dana 30 axle, built to original Jeep specifications as a direct OE replacement, in the front position.
It fits the 1987–1995 Jeep Wrangler (YJ). The 1984–1991 Cherokee (XJ) is not confirmed, so check your model before ordering.
Key features
- Direct OE replacement built to original specifications
- Made for the Dana 30 front axle
- Seals the vacuum disconnect cover
Replacing a disconnect gasket
A cover gasket seals the joint between the vacuum disconnect housing and the axle, keeping lubricant in and dirt out. Gaskets compress under the bolts and can harden over time, so an old one often leaks even when the cover looks clean. A thin bead of sealant on the mating surface can help, but the gasket still needs to seat evenly.
Before reinstalling, scrape away old gasket material and wipe both surfaces so they are clean and flat. Look for warping or scoring on the cover if the old gasket shows uneven compression. Tighten the cover bolts in a crisscross pattern so the gasket seats evenly, and check for leaks after a short drive.
- Scrape off old gasket material completely
- Wipe mating surfaces clean and dry
- Check the cover for warping or scoring
- Tighten bolts evenly in a crisscross pattern
Specifications
| Brand | Omix-ADA |
|---|---|
| Part number | 16527.19 |
| UPC | 804314029029 |
| Axle type | Dana 30 |
| Position | Front |
| Function | Vacuum disconnect front axle |
Vehicle fitment
It fits the 1987–1995 Jeep Wrangler (YJ) in Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims.
Confirm fit for the 1984–1991 Cherokee (XJ) against the axle and model before installing, since that model is not confirmed for this gasket.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One gasket, Omix-ADA part number 16527.19.
