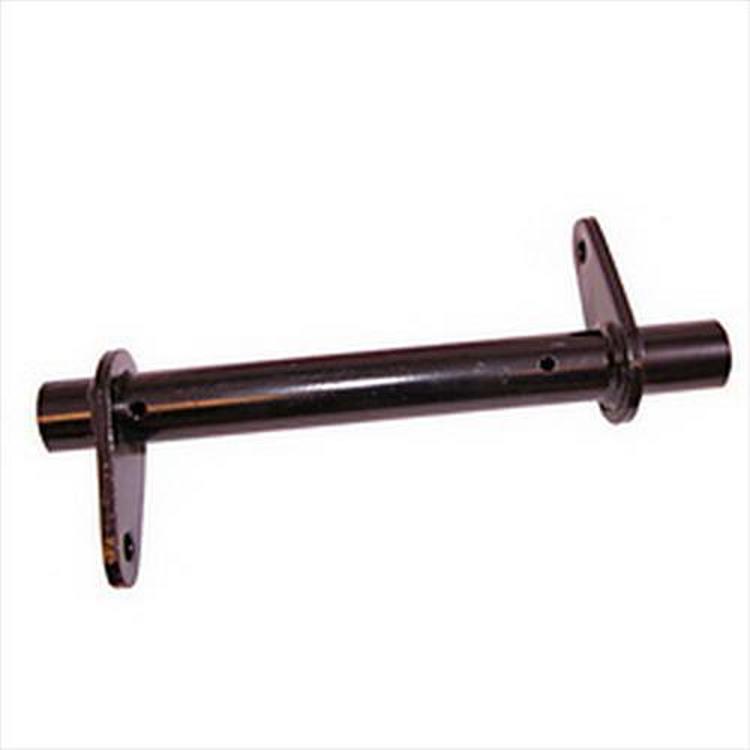

Omix-ADA Clutch Linkage Cross Shaft – 16920.04

Omix-Ada

Shop Jeep Willys CJ-3 CJ Clutch Parts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Clutch linkage cross shaft for 4 cylinder engine
  • Long fitment list of Jeep and Willys models from 1941 to 1971
  • Omix-ADA part number 16920.04, UPC 804314010348
  • Limited five year manufacturer warranty

Description

Overview

The Omix-ADA 16920.04 is a clutch linkage cross shaft for 4 cylinder Jeep and Willys vehicles from 1941 through 1971. The cross shaft is one piece of the clutch linkage, the rods and levers that carry pedal motion to the clutch, and this part covers many older CJ, DJ and Willys models.

Key features

  • Clutch linkage cross shaft
  • Fits 4 cylinder engines
  • Fitment list spanning 1941 to 1971 Jeep and Willys models
  • Omix-ADA part number 16920.04

Matching an older clutch linkage

Early Jeep and Willys clutch linkages were built in many configurations, so the cross shaft has to match the exact linkage geometry as well as the model. The cross shaft turns the motion of the clutch pedal rod into a sideways pivot, so a shaft with a worn bore or bent arm changes the travel the clutch sees. Before fitting, compare the arm angles and bushing seats with the old shaft.

Because the shaft carries load at a pivot, inspect the bearing surfaces for wear and the arms for cracks or bends. Clean the bore and lubricate the shaft as the service procedure for your model describes. Keep notes of the original arm positions so the reassembly matches the old shaft. Pedal height and free travel should be checked after reassembly, since an altered cross shaft can shift both.

  • Compare arm angles with the old shaft
  • Check bearing surfaces for wear
  • Inspect arms for cracks or bends

Specifications

Brand Omix-ADA
Part number 16920.04
UPC 804314010348
Part type Clutch linkage cross shaft
Engine 4 cylinder

Vehicle fitment

Omix-ADA’s list covers CJ3, CJ5, CJ6, DJ3, DJ5 and DJ6 models, the Commando, Dispatcher, FC150, FC170, Jeepster and Utility, and Willys MB, 1-Ton, CJ-2 through CJ-6, DJ-3, Jeepster, Panel and Sedan Delivery vehicles, with years set by model.

Models built after 1971, including the CJ7, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The list spans many model years, so match the cross shaft to your exact model and year rather than the general Jeep or Willys name.

What’s included

The cross shaft only.

SKU: OAI16920.04 Category:

Specification

Shipping weight 0.95 lbs
Package dimensions 7.00 × 7.00 × 5.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ31959–1960Base
Jeep CJ51959–1960, 1965, 1968–1971Base
Jeep CJ61959–1960, 1965, 1968–1971Base
Jeep Commando1967Base
Jeep Dispatcher1961–1967Base
Jeep DJ31959–1960Base
Jeep DJ51967–1971Base
Jeep DJ61968Base
Jeep F41957–1958Base
Jeep FC1501958–1966Base
Jeep FC1701964–1966Base
Jeep Jeepster1967–1971Base, Commando
Jeep Utility1961–1962Base
Jeep Willys 1-Ton1947–1955All
Jeep Willys CJ-21946–1949All
Jeep Willys CJ-31949–1958All
Jeep Willys CJ-51955–1958All
Jeep Willys CJ-61956–1958All
Jeep Willys DJ-31956–1958All
Jeep Willys Jeepster1949–1952All
Jeep Willys Panel1946–1950All
Jeep Willys Sedan Delivery1951–1955All
Willys MB1941–1942Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 16920.04 cross shaft fit a Jeep Dispatcher from 1961?

Yes. It fits the 1961–1967 Jeep Dispatcher (Base), and it is for 4 cylinder engines. Confirm your engine and trim before fitting.

Does this cross shaft fit a Jeep CJ7?

No. The fitting range ends at 1971 and does not include the CJ7, so CJ7 applications are not covered. Confirm your year and model before fitting this cross shaft.

Which engine type is this cross shaft for?

It is for 4 cylinder engines. No 6 cylinder or diesel application is included, so compare your engine type with this application before fitting.

Can a worn cross shaft be repaired instead of replaced?

Minor bore wear can sometimes be addressed by cleaning and new bushings, but a bent arm or a cracked shaft should be replaced. Check the arms and bearing surfaces before deciding, and confirm the repair keeps the original geometry.
