Overview

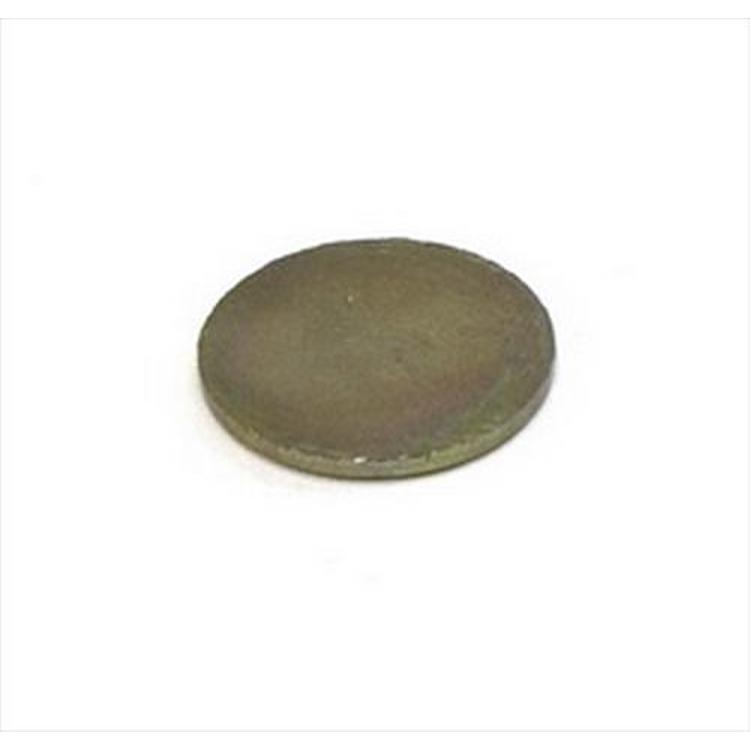

The Omix-ADA 16920.09 is a clutch cross shaft plate for 4 cylinder Jeep and Willys vehicles from 1941 through 1971. It is one of the clutch linkage parts, so it matters most when the cross shaft is being serviced.
Key features
- Clutch cross shaft plate for the linkage
- Built for 4 cylinder engines.
- Manufacturer list runs from 1941 through 1971
- Omix-ADA part number 16920.09
Setting up the linkage
The cross shaft plate holds the shaft in position within the clutch linkage and keeps the pedal arm aligned with it. When the plate bends, cracks or its mounting holes wear oval, pedal travel becomes uneven and the clutch can feel vague. When replacing one, check the mounting holes, the bushings the plate supports, and the clutch rod ends at the same time.
After installation, work the clutch pedal through its full travel with the engine off. Look for binding at the top or bottom of the stroke and listen for unusual noise. Tighten the fasteners to the specified torque from the vehicle’s service guide and recheck them after a short drive.
- Check mounting holes for elongation
- Look for cracks around the bends
- Replace worn bushings at the same time
Specifications
| Brand | Omix-ADA |
|---|---|
| Part number | 16920.09 |
| UPC | 804314066659 |
| Part type | Clutch cross shaft plate |
| Engine | 4 cylinder |
Vehicle fitment
The list covers CJ3, CJ5 and CJ6 models, with CJ5A and CJ6A in 1966–1967, plus Dispatcher, DJ3, DJ5, DJ6, F4, FC150, FC170, Jeepster, Utility, Commando, and Willys MB, 1-Ton, CJ-2 through CJ-6, DJ-3, Jeepster, Panel and Sedan Delivery models.
Years differ by model, and the CJ7 is not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the years differ by model, match your exact model and year to the plate’s listed range before fitting.
What’s included
The package contains the cross shaft plate only.
