Mountain Off Road Enterprises Heavy-Duty Drag Link – 9927Z

Mountain Off Road Enterprises

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits listed 1982–1983 Jeep CJ5, 1982–1986 CJ7 and 1982–1985 Scrambler models
  • 1 inch O.D. steel tubing with .219 wall
  • Rod ends are race-car quality, with 5/8 threads
  • Zinc plated, part number 9927Z

Description

Overview

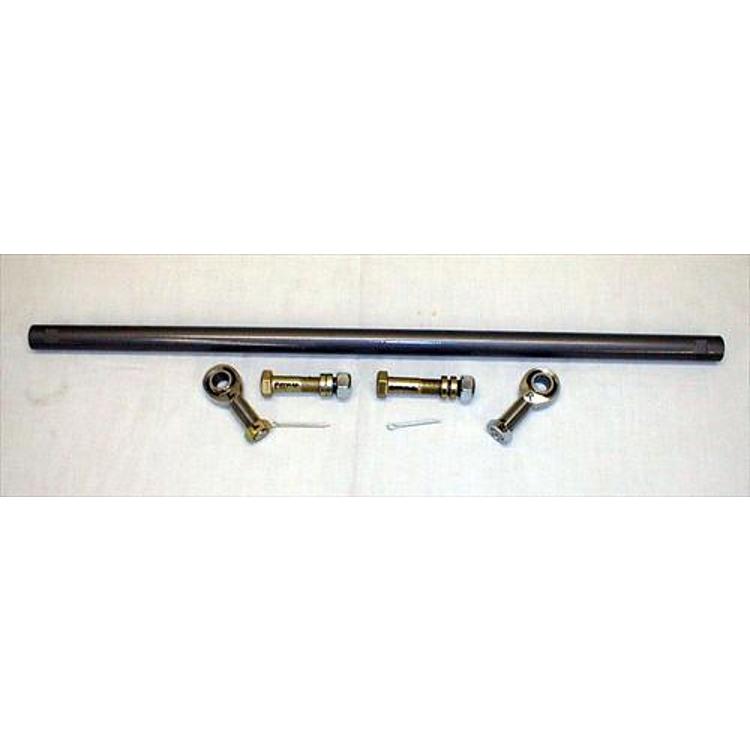

The Mountain Off Road Enterprises 9927Z is a heavy-duty drag link for the Jeep CJ5, CJ7 and Scrambler from 1982 to 1986. It is made from 1 inch O.D. by .219 wall D.O.M steel tubing with threaded 5/8 rod ends.

The rod ends are race-car quality, Teflon and Kevlar lined and self lubricating. The alloy steel rod end bodies are heat treated and plated, and the link mounts under or over the knuckles. It is designed for Dana 30 wide track axles.

Key features

  • 1 inch O.D. by .219 wall D.O.M steel tubing
  • Threaded 5/8 left and right rod ends with wrench flats
  • Teflon and Kevlar lined, self lubricating rod ends
  • Heat treated, plated alloy steel rod end bodies
  • Mounts under or over the knuckles

Drilling and fitting the rod ends

A drag link carries the steering force from the steering box to the knuckles, so its ends must be secure and free of play. On a CJ with the stock tapered hole, the rod end has to be fitted into a straight hole before the link will seat properly, which is why the hole preparation matters.

Check the knuckle and steering arm for cracks before fitting, and clean the threads so the jam nuts run freely. Rod ends that show binding or roughness should be replaced rather than forced. Inspect the link after the first few drives for play at each end, since drilling and fitting can shift alignment.

Steering alignment should be checked after the drag link is installed, especially if the vehicle has changed tire size or suspension height. Inspect the rod ends for play at routine service intervals.

  • Clean threads before fitting
  • Check knuckles and steering arms for cracks
  • Recheck alignment after installation
  • Inspect rod ends for play at service

Specifications

Brand Mountain Off Road Enterprises
Part number 9927Z
UPC 70000503484
Tubing 1 inch O.D. x .219 wall D.O.M steel
Rod end thread 5/8 left and right
Rod end body Alloy steel, heat treated and plated
Finish Zinc plated
Axle compatibility Dana 30 wide track

Vehicle fitment

It fits the 1982–1983 Jeep CJ5 (Base, Laredo, Limited, Renegade), the 1982–1986 Jeep CJ7 (Base, Laredo, Limited, Renegade) and the 1982–1985 Jeep Scrambler (Base, Laredo, Renegade, SL, SR).

Years before 1982 and Jeep Wrangler models are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The stock tapered hole must be drilled out to a straight 5/8 inch hole before the rod ends fit. Jam nuts and grade 8 hardware are provided. Wear eye protection when drilling.

What’s included

Jam nuts and grade 8 hardware are included. The rod ends are part of the link.

SKU: MRE9927Z Category:

Specification

Shipping weight 6.00 lbs
Package dimensions 40.00 × 4.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51982–1983Base, Laredo, Limited, Renegade
Jeep CJ71982–1986Base, Laredo, Limited, Renegade
Jeep Scrambler1982–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 9927Z fit a Jeep CJ5 or CJ7?

Yes. The 9927Z fits the 1982–1983 Jeep CJ5, the 1982–1986 Jeep CJ7 and the 1982–1985 Scrambler. Check your year and trim against the entries above before buying.

Is this a wide or narrow track drag link?

It is designed for a Dana 30 wide track axle. Measure your axle width and confirm the fit before ordering, then check the link against your steering setup before fitting.

What tubing size does it use?

The drag link is made from 1 inch O.D. by .219 wall D.O.M steel tubing, with 5/8 left and right threaded rod ends. The rod ends are race-car quality, Teflon and Kevlar lined and self lubricating.

Does the drag link include hardware?

Yes, jam nuts and grade 8 hardware are provided with the drag link. The rod ends mount under or over the knuckles, and the stock tapered hole needs drilling to a straight 5/8 inch hole first.

What signs show a drag link needs replacing?

Look for play at the rod ends, a wandering or vibrating steering wheel, or visible cracks in the tubing near the threads. Check the knuckles and joints while the link is off the vehicle. Replace the link if the play returns after the joints have been tightened.
