Overview

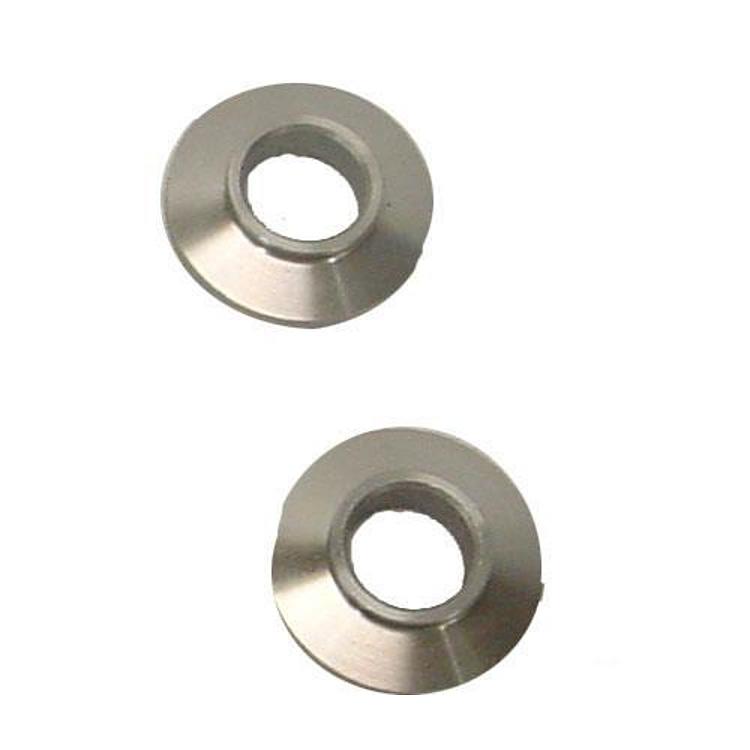

The Mountain Off Road Enterprises HDW34 is a 3/4 inch high misalignment washer for heim joints. Misalignment spacers leave room between a heim joint and its mounting surface so the joint can move through its full range of travel.
Without that room, a heim joint can bind against mount surfaces and damage components. The spacer can also be used to adjust clearance between a link and nearby surfaces.
Key features
- 3/4 inch bore
- Keeps a heim joint from binding against mount surfaces, per the manufacturer
- Can set clearance between a link and nearby surfaces
- Required in most heim joint applications, per the manufacturer
- Part number HDW34, UPC 70000503393
Spacers and heim joint wear
A heim joint uses a spherical bearing that tolerates angle changes as the suspension moves. When the joint is pulled tight against a mount, that angle change loads the housing and the bolt, and binding can wear the bearing faster. A spacer moves the joint away from the mount so it can swing through its full arc without rubbing, which protects both the joint and the surrounding hardware.
Choosing a spacer comes down to fit. The bore must suit the joint shank, and the spacer must sit flat so it does not crush or tilt under load. After installation, check the joint through full travel and look for contact marks on the mount. Inspect the bearing for grit, rust or play during routine service, and replace the joint when it no longer moves smoothly.
- Check that the spacer sits flat against the mount
- Look for contact marks after a full-travel test
- Inspect the joint for grit, rust or play
Specifications
| Brand | Mountain Off Road Enterprises |
|---|---|
| Part number | HDW34 |
| UPC | 70000503393 |
| Bore | 3/4 inches |
| Type | High misalignment washer |
| Packaging | Single piece |
| Fitment | Universal fit |
Vehicle fitment
It is not matched to a particular vehicle. It is a universal fit part, and its use depends on the bore matching your heim joint and mount rather than on a model.
Before ordering, confirm the year, model and trim that suit your build.
Installation notes
Measure the heim joint’s shank against the 3/4 inch bore before fitting. Once the washer is in place, check that the joint swings through its full range without contacting the mount.
What’s included
The washer ships as a single piece.
