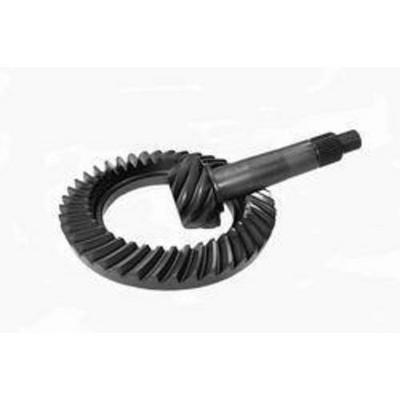

Motive Gear Chrysler 9.25 Inch Rear 3.55 Ratio Ring and Pinion – C9.25-355

Motive Gear

$288.33In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 5:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion for Chrysler 9.25 inch rear axles
  • 3.55 gear ratio
  • Part number MIDC9.25-355
  • 8620 steel, CNC machined, computer controlled heat treatment

Description

Overview

The Motive Gear C9.25-355 is a ring and pinion gear set with a 3.55 gear ratio for Chrysler 9.25 inch rear axles, sold under part number MIDC9.25-355. It is a light duty O.E. quality replacement for on-road and off-road driving.

A ring and pinion sets the final drive ratio of a differential, so the 3.55 figure is the number to match against your current gearing. Motive Gear says gears of this type are found in everyday automobiles, trucks and vans.

Key features

  • Light duty O.E. quality replacement gear set
  • 8620 steel gears
  • CNC machined throughout
  • Computer controlled heat treatment
  • 3.55 gear ratio

Choosing the ratio

The ratio is the number of driveshaft turns needed for one wheel turn, and it sets how the axle trades acceleration against cruising speed. A numerically higher ratio gives stronger pulling from a stop, while a lower one tends to suit steady highway use. Before buying, compare the ratio you have now with 3.55 and think about how the tire size you run changes the effective gearing.

Ring and pinion gears are usually replaced together with the bearings and carrier shims that set their position. If the carrier bearings are worn or the housing has been bent, a new set may not run quietly. Check the housing for damage and make sure the axle bearings are in good condition before the gears go in.

  • Compare the current ratio with the new set before ordering
  • Tire diameter changes the effective gearing
  • Check the housing for cracks or distortion
  • Use fresh axle fluid once the set is broken in

Specifications

Brand Motive Gear
Part number MIDC9.25-355
Axle manufacturer Chrysler
Axle location Rear
Axle type Chrysler 9.25 inches
Gear ratio 3.55
Gear material 8620 steel
Machining CNC throughout
Heat treatment Computer controlled

Vehicle fitment

It is made for the Chrysler 9.25 inch rear axle type at a 3.55 ratio.

Confirm your vehicle’s year, model and trim before ordering. Measure your axle housing and confirm the axle type and 3.55 ratio before choosing this gear.

Installation notes

Gear sets like this need professional setup, with pinion depth, bearing preload and backlash set during installation. Plan for a break-in period as directed by the installer.

What’s included

The title identifies one ring and pinion gear set, 3.55 ratio, for the Chrysler 9.25 inch rear axle.

Not included: Pinion bearings, shims and installation hardware may be needed in addition to the gear set. Check the package contents against your installation before starting.

Questions & Answers

Which vehicles does the Motive Gear MIDC9.25-355 fit?

Fit depends on your axle. It is for the Chrysler 9.25 inch rear axle at a 3.55 ratio. Confirm fit for your vehicle's year, model and trim before ordering.

What gear ratio is part MIDC9.25-355?

It is made for the rear Chrysler 9.25 inch axle at a 3.55 ratio. Confirm fit for your vehicle's year, model and trim before ordering.

Is this set made from 8620 steel?

Yes. The gears are 8620 steel, machined CNC throughout and given computer controlled heat treatment. Inspect the teeth after installation and again during the break-in period.

Is it suitable for off-road use?

Yes, it is suited to on-road and off-road driving as a light duty replacement. Heavy off-road use puts more load on the gears, so ask a gear shop whether a heavier duty set suits your driving before installing it.

How can I tell the old gears need replacing?

Common signs are a whine that changes with speed or load, clunks when shifting between drive and reverse, and metal particles on the magnetic drain plug. Chipped or pitted teeth found during inspection confirm the wear, so have the gears looked at before deciding.
