Overview

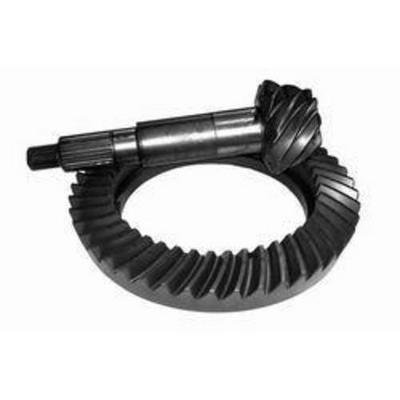

The Motive Gear D60-373 is a ring and pinion set with a 3.73 gear ratio for Dana 60 axles, sold under part number MIDD60-373. It is made for front or rear axle positions.
Light duty O.E. quality replacement gears are what Motive Gear offers here, and the gears are cut from 8620 steel. Heat treatment is computer controlled, and the gears are machined CNC throughout.
Key features
- 3.73 gear ratio for Dana 60 axles
- Fits front or rear Dana 60 axle positions
- 8620 steel gears
- CNC machining throughout
- Computer controlled heat treatment
Front and rear Dana 60 use
Dana 60 axles are heavy duty housings, and the same ring and pinion design can be found in front and rear positions. Because front and rear gears run at different driveline angles, the pinion depth and carrier shims differ between them, so the position must be confirmed before setup. A 3.73 ratio gives strong low speed pulling, though tire size still changes the final result.
Gears that see frequent low speed work benefit from careful break-in, while highway use puts less stress on the teeth. Regular axle fluid changes help keep the mesh surfaces protected, and a fluid check after a water crossing or a hard off road outing is a sensible habit.
- Confirm front or rear position before ordering the set
- Replace bearings and seals when the housing is open
- Use the correct gear oil for the axle
- Check pinion depth and backlash after installation
Specifications
| Brand | Motive Gear |
|---|---|
| Part number | MIDD60-373 |
| Axle manufacturer | Dana |
| Axle location | Front|Rear |
| Axle type | Dana 60 |
| Gear ratio | 3.73 |
| Gear material | 8620 steel |
| Machining | CNC throughout |
| Heat treatment | Computer controlled |
Vehicle fitment
No vehicle year, model or trim is attached to this gear set. Its fit is defined by the Dana 60 axle type and the 3.73 ratio.
Confirm your vehicle’s year, model and trim before ordering. Measure your Dana 60 housing and confirm the 3.73 ratio before choosing this set.
Installation notes
Pinion depth, bearing preload and backlash need to be set by a professional during installation, and the installer should confirm the break-in routine.
What’s included
One ring and pinion gear set for Dana 60 axles at a 3.73 ratio.
Not included: Pinion bearings, carrier bearings and shims may be needed. Check the package contents against your installation before starting.
