Overview

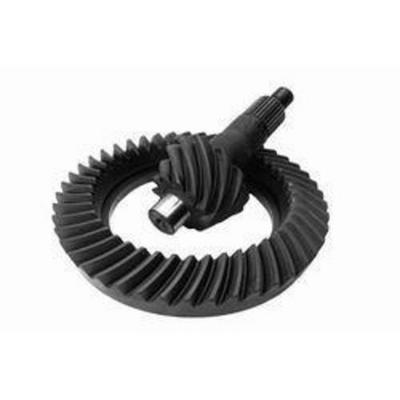

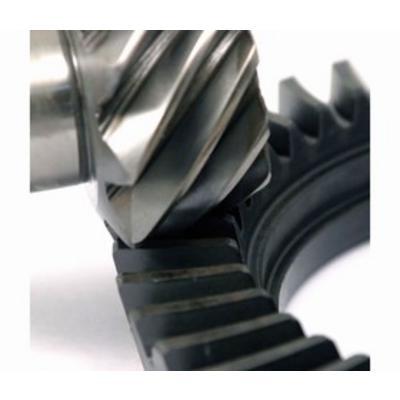

The Motive Gear MIDF9.75-489 is a 4.89 ratio rear ring and pinion set for the Ford 9.75 Inch 12 bolt axle. It is a light duty, O.E. quality replacement built from 8620 steel, with CNC machining throughout and computer controlled heat treatment.
Motive Gear positions the set as suitable for on-road and off-road use. Confirm the 4.89 ratio and axle designation before fitting.
Key features
- 4.89 gear ratio for the rear axle
- 12 bolt Ford 9.75 Inch axle designation
- 8620 steel construction
- CNC machining throughout
- Computer controlled heat treatment
- Light duty O.E. quality replacement
Ratio and driving style
A 4.89 ratio gives the engine more leverage at the wheels, which helps with heavy loads, steep grades and slow trail work. The trade off is higher engine speed at highway speed. Before deciding, compare this ratio with the tire size you run, since a larger tire lowers the effective ratio and changes how the vehicle feels.
Gears with a higher ratio put more load on the teeth at low speed, so pinion depth, backlash and carrier preload need precise setup. Regular checks of the axle fluid and a gentle break-in help the teeth wear evenly. If the vehicle is used for towing, consider whether the cooling and fluid capacity of the axle are adequate.
- Compare the ratio with the tire diameter
- Plan for higher engine speed at highway speed
- Have a professional verify pinion depth and backlash
- Inspect the teeth at each fluid change
Specifications
| Brand | Motive Gear |
|---|---|
| Part number | MIDF9.75-489 |
| Axle manufacturer | Ford |
| Axle location | Rear |
| Axle type | Ford 9.75 Inches |
| Bolt pattern | 12 bolt |
| Gear ratio | 4.89 |
| Material | 8620 steel |
| Manufacturing | CNC throughout, computer controlled heat treatment |
| Fitment label | Universal Fit |
Vehicle fitment
Fit is set by the Ford 9.75 Inch 12 bolt rear axle and the 4.89 ratio. Compare both against your rear housing before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Gear sets with a 4.89 ratio call for careful pinion depth and backlash work, so have a professional handle setup and let the teeth wear in gently.
What’s included
The set is the ring and pinion only; no additional hardware is named.
