Motive Gear AMC Model 20 3.73 Ratio Ring and Pinion – AM20-373

Motive Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion, part MIDAM20-373
  • AMC 20 axle type, 3.73 gear ratio
  • Suited to either front or rear axle location
  • 8620 steel with CNC machining throughout

Description

Overview

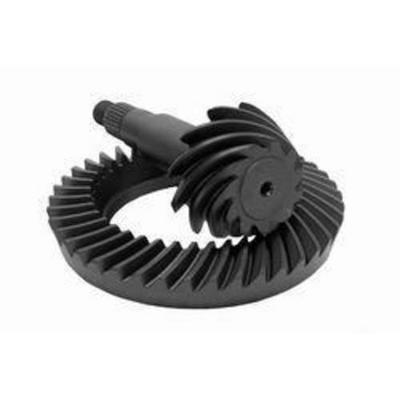

The Motive Gear AMC Model 20 3.73 ratio ring and pinion, part number MIDAM20-373, is a replacement gear set for AMC 20 axles. Motive Gear markets it as an O.E. quality, light duty option suited to on-road and off-road applications.

The gears are cut from 8620 steel, machined on CNC equipment throughout and given computer controlled heat treatment.

Key features

  • 3.73 gear ratio
  • 8620 steel gear set
  • CNC machined throughout
  • Computer controlled heat treatment.

Gear mesh and break-in

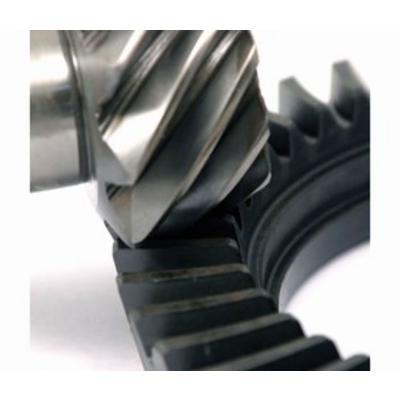

Ring and pinion gears carry engine torque to the wheels through the differential, and the mesh between the two gears decides how quietly the axle runs. Backlash that is too tight can heat the teeth and wear them early, while too much backlash causes clunks when the throttle changes direction. A tooth contact pattern that sits toward one edge under load points to a setup problem, not a fault in the metal.

Because the ring and pinion are a matched pair, replacing them often calls for checking the pinion and carrier bearings at the same time. Worn carrier bearings let the ring gear shift, which changes mesh and shortens the life of new teeth. Install the gears as a set and avoid mixing a new gear with an old partner.

  • Look at the old teeth for pitting, chipping or scoring to find the cause of failure
  • Check axle fluid for metal fragments after the first outings
  • Re-check preload and backlash after the early break-in drives

Specifications

Brand Motive Gear
Part number MIDAM20-373
Axle manufacturer AMC
Axle type AMC 20
Axle location Front or rear
Gear ratio 3.73
Material 8620 steel
Quality level Light duty O.E.
Fitment type Universal fit.

Vehicle fitment

No vehicle is named for this gear set. The AMC 20 axle type is the stated match, so verify it on your axle before buying.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

For this 3.73 set, a shop familiar with AMC 20 gear setup and break-in is the realistic route, since backlash and contact pattern affect noise and wear.

What’s included

A ring and pinion gear set only. Check the package contents against your installation before starting.

Questions & Answers

What gear ratio is Motive Gear MIDAM20-373?

It is a 3.73 gear ratio ring and pinion for the AMC 20 axle type. Motive Gear lists rear or front axle location, and the gears are made from 8620 steel.

Will this gear fit my AMC 20 axle?

Yes, if your axle is an AMC 20. Measure the housing and confirm the axle type before ordering, because fit follows the axle rather than a vehicle year.

How do I choose between gear ratios?

The 3.73 ratio is a numerically higher setting for stronger pulling from a stop. Choosing a ratio depends on tire size and how the vehicle is driven, so a gear shop can help you decide.

Should the bearings be replaced with the new gears?

Often yes. Worn pinion or carrier bearings change gear mesh and can damage a new ring and pinion, so inspect them while the axle is open. Replace any bearing that shows play, roughness or heat discoloration.
