Overview

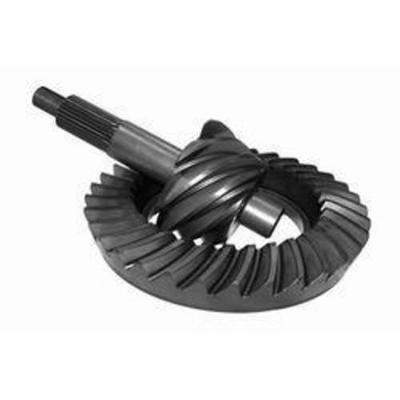

The Motive Gear MIDF9-350 is a rear ring and pinion gear set with a 3.50 ratio for the Ford 9 Inch axle. It is a light duty, O.E. quality replacement made from 8620 steel with computer controlled heat treatment.
The set is intended for both on-road and off-road driving. Ring and pinion gears of this kind are common in everyday cars, trucks and vans.
Key features
- 3.50 gear ratio for the Ford 9 Inch rear axle
- 8620 steel construction
- CNC machining throughout
- Computer controlled heat treatment
- Light duty O.E. quality replacement design
- Suited to on-road and off-road use
Using a 9 Inch axle
The Ford 9 Inch axle is a long running rear design, and many owners use it for work and trail duty. A 3.50 ratio favors highway cruising over quick launches, so think about how the vehicle is driven before buying. Tire size and towing also shape which ratio feels right.
Check the carrier and pinion bearings, along with the axle shafts, when the housing is opened. Pinion depth and backlash should be set by someone experienced with 9 Inch axles, since a small change in the shims moves the contact pattern. Keep the gear oil clean and replace it on schedule to protect the new teeth.
- Track tire diameter changes against the ratio
- Inspect the carrier bearings and axle shafts
- Set pinion depth with a proper shim pack
- Change gear oil after break-in
Specifications
| Brand | Motive Gear |
|---|---|
| Part number | MIDF9-350 |
| Axle manufacturer | Ford |
| Axle location | Rear |
| Axle type | Ford 9 Inches |
| Gear ratio | 3.50 |
| Material | 8620 steel |
| Manufacturing | CNC throughout, computer controlled heat treatment |
| Fitment label | Universal Fit |
Vehicle fitment
No vehicles are named for this gear set. The Universal Fit label is not paired with a vehicle list, and the 9 Inch designation refers to the rear axle, so match the axle and 3.50 ratio to your vehicle first.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Expect a professional to check the gear mesh pattern and backlash on this 3.50 set, then run it gently through an early break-in period.
What’s included
No accessories or extra hardware are named as part of this gear set.
