Overview

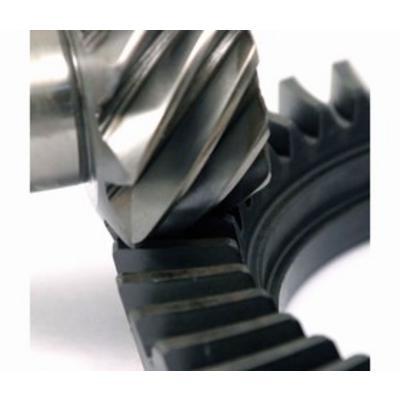

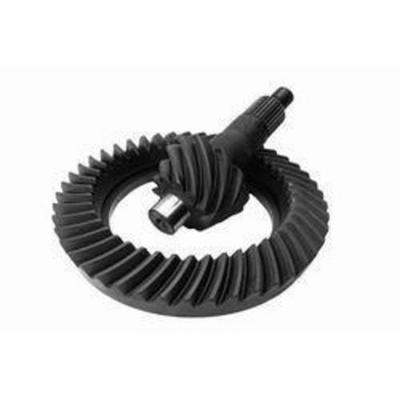

The Motive Gear MIDF9.75-355 is a rear ring and pinion set with a 3.55 gear ratio for the Ford 9.75 Inch 12 bolt axle. Motive Gear builds it as a light duty, O.E. quality replacement from 8620 steel, with CNC machining throughout.
Motive Gear offers the set for on-road and off-road applications. Check the axle designation and ratio against your current differential before choosing this gear set.
Key features
- 3.55 gear ratio for the Ford 9.75 Inch rear axle
- 12 bolt configuration.
- 8620 steel construction
- CNC machining throughout
- Computer controlled heat treatment
- Light duty O.E. quality replacement design
Matching the 9.75 axle
The Ford 9.75 Inch 12 bolt axle is identified by its cover bolt pattern and ring gear size. Matching those points is the first step, because a gear set can look right yet fail to seat correctly in a different housing. After the axle designation is confirmed, compare the 3.55 ratio against the one you run now.
Ring and pinion work is a job for an experienced differential builder. Pattern checks and backlash are measured with the carrier installed, and the carrier bearings and shims must be replaced or set at the same time. Gentle early driving helps the new gears seat evenly, and a fresh fluid change after break-in keeps the mesh clean.
- Compare the cover bolt pattern with your housing
- Check the ring gear size before buying
- Replace carrier bearings and shims during the job
- Change gear oil after the initial break-in
Specifications
| Brand | Motive Gear |
|---|---|
| Part number | MIDF9.75-355 |
| Axle manufacturer | Ford |
| Axle location | Rear |
| Axle type | Ford 9.75 Inches |
| Bolt pattern | 12 bolt |
| Gear ratio | 3.55 |
| Material | 8620 steel |
| Manufacturing | CNC throughout, computer controlled heat treatment |
| Fitment label | Universal Fit |
Vehicle fitment
This gear set fits by axle designation rather than by vehicle. Match the Ford 9.75 Inch 12 bolt rear axle, bolt pattern and 3.55 ratio to your vehicle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Pattern checks, backlash setting and carrier preload should be handled by a qualified differential builder, followed by a gradual break-in.
What’s included
Only the gear set itself is described; no hardware or extras are named.
