Overview

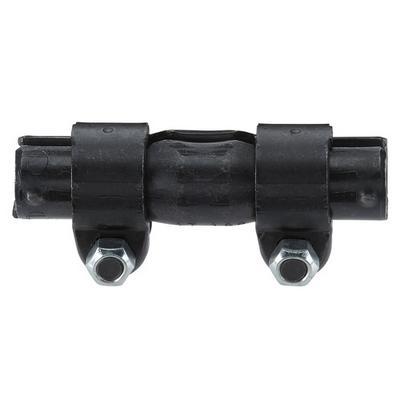

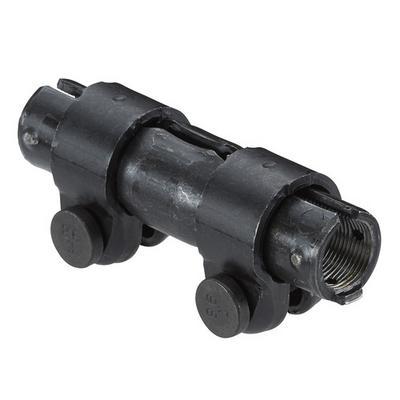

The Moog ES2079S is a tie rod end adjusting sleeve for a wide range of Ford, Jeep and Mazda trucks and SUVs, including the 1980-1996 Ford Bronco, 1991-2001 Jeep Cherokee and 1997-2006 Jeep Wrangler. The sleeve joins two tie rod ends and lets the steering linkage length be set for alignment.
The sleeve is made of alloy steel with a corrosion-resistant coating, and design changes aim to extend life and simplify replacement.
Key features
- Alloy steel construction for durability
- Coated for corrosion resistance
- Includes any necessary hardware
- Direct-fit replacement
- Broad coverage across Ford, Jeep and Mazda models
Measuring and setting length
Before removing the old sleeve, measure its length from center to center of the tie rod ends or mark the thread position. Matching that length gives a close starting point for toe, though a final alignment is still needed. Thread the new sleeve on evenly so both ends engage the same number of threads.
Older Ford, Jeep and Mazda linkages often show corrosion at the sleeve threads and clamp areas. Clean the threads with a wire brush and apply anti-seize only where it suits the clamp. Tighten the clamps and jam nuts once the length is set, and recheck them after the first few drives.
- Mark the thread position before removal
- Clean the threads before fitting
- Re-check toe after the first drive
Specifications
| Brand | Moog |
|---|---|
| Part number | MOGES2079S |
| Part type | Tie rod end adjusting sleeve |
| Material | Alloy steel |
| Finish | Corrosion-resistant coating |
| Hardware | Includes any necessary hardware |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1980–1996 Ford Bronco, 1984–1990 Bronco II, 1991–1994 Explorer and Explorer Sport, 1980–1983 F-100, 1980–1997 F-150, 1993–1995 F-150 Lightning, 1980–1997 F-250, 1997 F-250 HD, 1980–1997 F-350, 1983–1997 Ranger, 1991–2001 Jeep Cherokee, 1991–1992 Comanche, 1993–1998 Grand Cherokee, 1997–2006 Wrangler, 1994–1997 Mazda B2300, 1994–1996 B3000, 1994–1997 B4000 and 1991–1994 Navajo.
The Jeep entries are listed by model and years only, so newer Cherokee, Grand Cherokee and Wrangler generations are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Setting the sleeve changes the length of the steering linkage, so a full wheel alignment should follow any adjustment.
