Overview

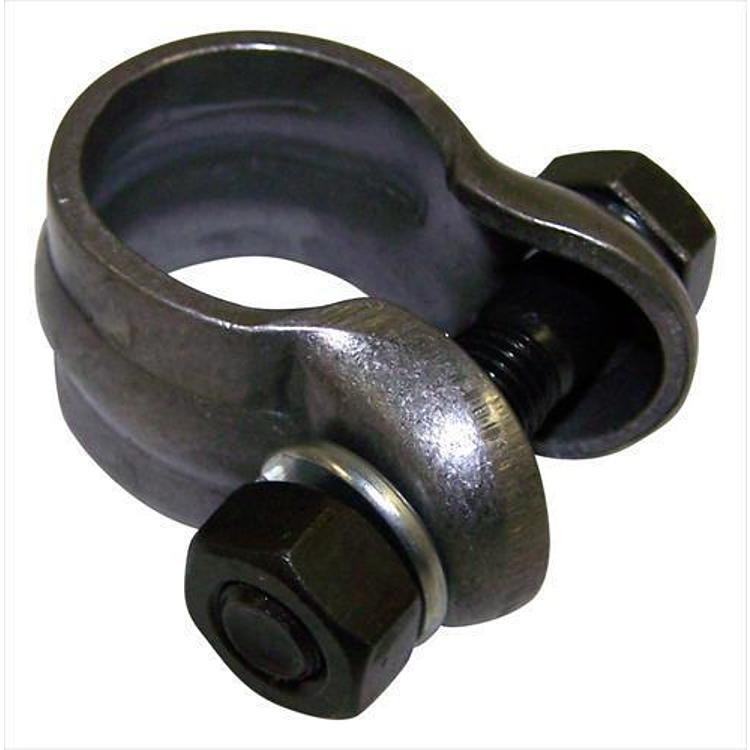

The Crown Automotive JA000837 is a tie rod adjusting tube clamp for the inner or outer end of a left or right tie rod assembly, supplied with its hardware. It fits early Jeep CJ, Commando, FC and Willys models from 1941 through 1971, including CJ3, CJ5, CJ6, FC150, FC170, the Willys MB and the Willys 1-Ton. Check the year and model against that range before ordering.
Key features
- Inner or outer clamp
- Works on left or right tie rod assembly
- Includes clamp and hardware
- Covers CJ, Commando, FC and Willys listings from 1941 to 1971
Setting tie rod length
A tie rod adjusting tube clamp holds the tube that sets the length of the tie rod assembly, so it controls toe once the steering is set. On the older CJ and Willys applications this clamp is used at either end of the tube, so the tube length is set before the clamp is fully tightened.
Older steering components are often worn together. Before fitting a new clamp, inspect the tie rod tube, the ends and the drag link for play, bent sections and corroded threads. Replace parts that show wear so the new clamp is not holding a loose joint.
- Clean the tube threads before fitting
- Check that the clamp grips the tube squarely
- Recheck toe after the first few miles of driving
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | JA000837 |
| UPC | 848399073089 |
| Position | Inner or outer |
| Application | Left or right tie rod assembly |
| Included | Clamp and hardware |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1959 Jeep CJ3 (Base), 1959–1971 CJ5 and CJ6 (Base), 1966–1971 Jeep Commando (Base), 1957–1964 Jeep FC150 and FC170 (Base), 1947–1955 Willys 1-Ton, 1946–1949 Willys CJ-2, 1949–1952 and 1954–1958 Willys CJ-3, 1955–1958 Willys CJ-5, 1956–1958 Willys CJ-6, 1951 Willys Sedan Delivery, 1955 Willys Utility Wagon, and 1941–1942 Willys MB (Base).
Confirm fit for your vehicle’s year, model and trim before ordering, especially for Wrangler or CJ7 applications.
Installation notes
Set the tube length before fully tightening the clamp, then have toe checked with an alignment.
What’s included
One clamp with hardware. Not included: the tie rod tube and the tie rod ends.
