Overview

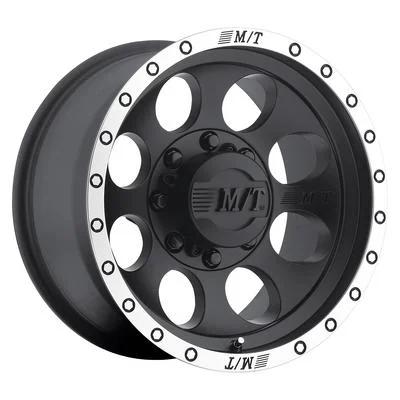

The Mickey Thompson Classic Baja Lock 17×9 wheel in Matte Black (part number M/T90000020089) is a 17 inch aluminum wheel, 9 inches wide, with a 6 on 5.5 bolt pattern and a -12 offset. It is the hole-style Baja Lock, built for 4×4 owners who want the off-road race and rock crawler styling of a beadlock wheel without the added expense.
The Baja Lock pairs Classic III styling with a simulated bead lock feature, so the hole-style face looks like a beadlock wheel without the added cost. It carries a lifetime limited guarantee for structural defects and a one year finish warranty. It is a universal fit wheel, so the bolt pattern, center bore and offset must be matched to your hub before buying.
Key features
- Hole-style face with a simulated beadlock look
- 17 inch diameter and 9 inch width
- Matte Black aluminum construction
- Offset -12 and backspacing 4.5
- Lifetime limited guarantee for structural defects and a one year finish warranty
Fitting a 17-inch wheel
A 17 inch wheel with a 9 inch width changes the overall tire diameter options and the amount of sidewall available. Larger wheels often come with lower-profile tires, which give less sidewall for flex and can be harder on rough trails.
Before buying, match the bolt pattern, center bore and offset to your hub. Test fit the wheel with the lug nuts torqued, checking brake and suspension clearance at full steering lock and full compression.
Carry a spare tire that matches the wheel size, and plan for lower-profile tires to affect ride quality. A bead seal check after mounting helps confirm the tire seated evenly on the rim. Recheck tire pressure after the first drive, since larger wheels can change how the tire sits.
Specifications
| Brand | Mickey Thompson |
|---|---|
| Part number | M/T90000020089 |
| Model | Classic Baja Lock |
| Style | Hole |
| Finish | Matte Black |
| Construction | Aluminum |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | -12 |
| Backspacing | 4.5 |
Vehicle fitment
No vehicle is named for this wheel because it is a universal fit design. Confirm the 6 on 5.5 bolt pattern, 106 center bore and -12 offset against your hub, and check the 17 inch diameter against your tire choice and fender clearance.
Center caps are not offered for several older applications: 1986 and earlier Jeep CJ Models, 1997 and earlier Toyota Land Cruiser Models, 1997 and earlier Ford 3/4 and 1-Ton Pickups, and 2002 and earlier Dodge/Ram 3/4 and 1-Ton Pickups. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Test fit the 17 inch wheel with the -12 offset against brake and suspension clearance before a trail run. Recheck lug torque after the first drive.
What’s included
The 17×9 Classic Baja Lock wheel in Matte Black. Compare the package contents with your installation plan before starting.
Not included: Tires.
