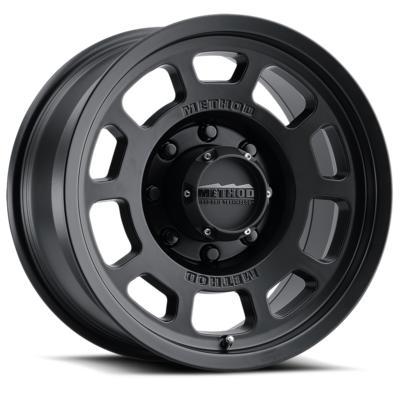

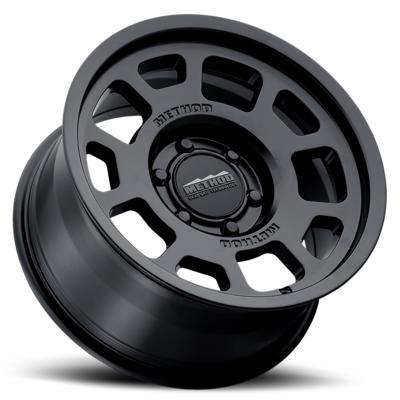

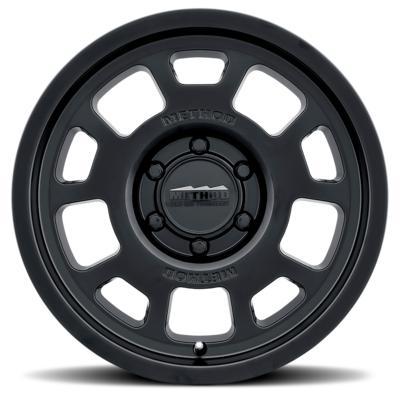

Method Race Wheels MR705Wheel, 18x9 with 8 on 180 Bolt Pattern – Matte Black – MR70589088518

Method Race Wheels

Shop Method Race Wheels 18x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR705 18×9 split-spoke wheel with an 8 on 180 bolt pattern.
  • Width is 8.5 inches; confirm it before ordering.
  • Offset 18, backspacing 5.75, center bore 131, Matte Black.
  • Universal Fit listed; part number MRWMR70589088518.

Description

Overview

The Method Race Wheels MR705 in 18×9 with an 8 on 180 bolt pattern is finished in Matte Black and carries part number MRWMR70589088518. Its listed offset is 18, backspacing 5.75 and center bore 131. Method markets this as part of the MR705 Bead Grip series for off-road drivers who lower tire pressure.

Confirm the exact width before ordering, since the wheel is 8.5 inches wide. The Bead Grip design holds the tire bead at low pressure, and the wheel includes a reinforced inner lip, a safety hump on the bead seats and a Universal Fit designation.

Key features

  • Bead Grip design that Method says holds the bead at low pressures for extra grip.
  • A356 aluminum, solid construction with T6 heat treatment.
  • Split 5-spoke layout with 10 windows and a debossed METHOD logo.
  • Method built an aggressive safety hump into each bead seat against de-beading.
  • Reinforced inner lip built on the MRW race wheel design.
  • Cap that snaps in and is embossed with the METHOD Bead Grip logo.
  • Push-through cap meant for 8-lug applications.
  • Rated 2650 lbs. to 3640 lbs.

Checking width before mounting

Width determines how far a tire can sit across the rim and how the tire profile fills the wheel well. Before buying tires or spacers, confirm the wheel’s width, since a width mismatch changes the tire range that will seat properly on the bead.

An 8 on 180 bolt pattern and 131 center bore are demanding measurements. Compare them with the hub on the vehicle, and use hub centric rings where the bore is larger than the hub. Inspect the wheel face and spokes for clearance once mounted.

Bead seat care is the same as for any Bead Grip wheel: keep seats clean, keep debris off the seating surface, and have the tire mounted by a shop familiar with the design. After a hard impact, check the wheel for cracks or bending before driving farther.

  • Confirm width before buying tires
  • Compare bolt pattern and bore with the hub
  • Inspect after hard impacts

Specifications

Brand Method Race Wheels
Part number MRWMR70589088518
Series MR705 Bead Grip
Wheel diameter 18 inches
Wheel width 8.5 inches
Bolt pattern 8 on 180
Offset 18
Center bore 131
Backspacing 5.75
Style Split Spoke
Finish Matte Black
Construction Solid A356 aluminum with T6 heat treatment
Load rating 2650 lbs. to 3640 lbs.

Vehicle fitment

Check the 8 on 180 bolt pattern and 131 center bore against your hub, along with offset 18 and backspacing 5.75, before ordering. Confirm the width too.

No vehicle, model year or trim is named. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Tire seating on Bead Grip wheels is a job for a shop that knows the design. After mounting, check caliper and suspension clearance, and confirm the final width with the manufacturer if your build depends on it.

What’s included

A snap-in cap and a push-through cap are the center cap options. Tires, lug nuts and valve stems need to be sourced separately.

SKU: MRWMR70589088518 Categories: ,

Questions & Answers

What is the width of MRWMR70589088518?

The wheel is 18 inches in diameter and 8.5 inches wide, with offset 18, center bore 131 and backspacing 5.75. Confirm the width against your build before ordering.

Does this 8 on 180 wheel come with a push-through cap?

The push-through cap is a center cap option for 8-lug applications, and this wheel uses an 8 on 180 bolt pattern. Check the package contents against your installation before starting.

Which vehicles fit this MR705 wheel?

Fit depends on your hub measurements, not a named vehicle. The wheel carries a Universal Fit designation, so check the 8 on 180 pattern, 131 center bore and backspacing before you buy.

How can I tell if a wheel needs a hub-centric ring?

Measure the center bore and the hub diameter. If the bore is larger than the hub, a hub-centric ring centers the wheel. Torque lug nuts after fitting, and recheck them after the first drive.

Why does bead seat design matter at low pressure?

The bead seat holds the tire edge against the rim when pressure drops, so its design is central to low-pressure running. Keep the seats clean, check them after hard impacts, and have tires mounted by a shop that knows the design.
