Overview

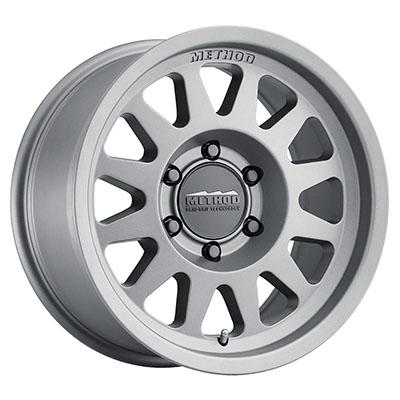

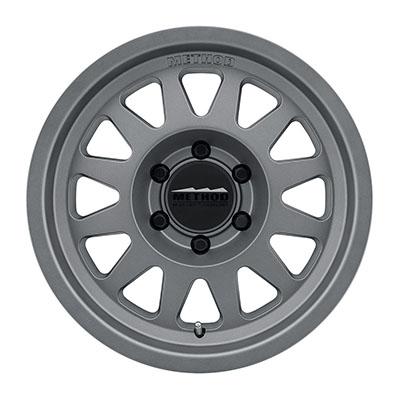

The Method Race Wheels 704 Trail Series 16×8 wheel in Matte Titanium, part number MRWMR70468060800, is a windowed aluminum wheel with a 6 on 5.5 bolt pattern for off-road use. It is cast in one piece from 356 aluminum and heat treated to T6. The windowed face leaves openings that show the wheel’s inner structure.

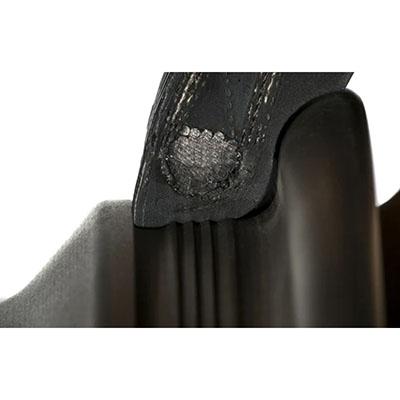

Method developed the 704 for the off-road racing community. The company says each wheel was engineered with finite element analysis and field tests, and that the design aims to reduce weight while adding strength. The MR704 Bead Grip design engages the tire bead seat for more grip when you run lower air pressures, and a reinforced inner lip borrowed from race wheel design supports the tire where it sits.
Offset is the distance from the wheel’s mounting face to its centerline, and backspacing is the distance from the mounting face to the inner lip. This wheel lists offset 0 and backspacing 4.5, which together control how far the wheel sits inside the fender.
Key features
- MR704 Bead Grip design meant to add tire grip at lower air pressures
- Reinforced inner lip taken from race wheel design
- Safety hump on the inner and outer bead seat to help prevent de-beading
- One-piece cast 356 aluminum construction with T6 heat treatment
- Windowed style with a Matte Titanium finish
- The wheel is engineered to be lighter and stronger, with development using finite element analysis and field testing.
Windowed wheel fit and tire choice
An 8 inch wide wheel takes a different tire range than a narrower wheel of the same diameter. Tire width, overall diameter and sidewall height all change how the tire sits on the rim and how it clears the fender. Measure the tire you plan to run against the fender before buying, especially if you add a larger tire later.
The matte finish keeps glare low, but it still needs regular cleaning. Dirt packed into the windows can hold moisture against the metal, so rinse the wheel after mud and sand runs. The reinforced inner lip supports the tire where it sits, but it does not remove the need to inspect the lip after rock strikes. Check the bead seat and valve stem after each change in pressure.
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70468060800 |
| Series | MR704 Bead Grip (Trail Series) |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Bolt pattern | 6 on 5.5 |
| Offset | 0 |
| Center bore | 106 |
| Backspacing | 4.5 |
| Style | Windowed |
| Finish | Matte Titanium |
| Construction | One-piece cast 356 aluminum, T6 heat treated |
Vehicle fitment
Before ordering, compare the 6 on 5.5 bolt pattern and 106 center bore with your hub, and the 0 offset and 4.5 backspacing with your brake and suspension clearance.
An 8 inch width also changes which tire sizes fit well, so check tire and wheel compatibility before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The wheel is sold as one item. Plan for tires, center caps and lug hardware separately.
